The Smartscan Technology GSR-01 Series is specifically designed for industrial machinery and automation safety control. Featuring high stability and a long lifespan, it supports multiple output modes and is ideal for integration into various safety light curtain control systems. Its modular design and ruggedized structure ensure stable, long-term operation to meet a wide range of safety protection requirements.
| Operating Voltage |
DC12V~24V（±10％）
|
||||
| Optical Axis Pitch |
150mm
|
||||
| Detection Zone |
2mm(set the distance 0.5m,Opaque object)
|
||||
| Operating Distance |
The distance is within 1m
|
||||
| Responce Time |
1 ms below
|
||||

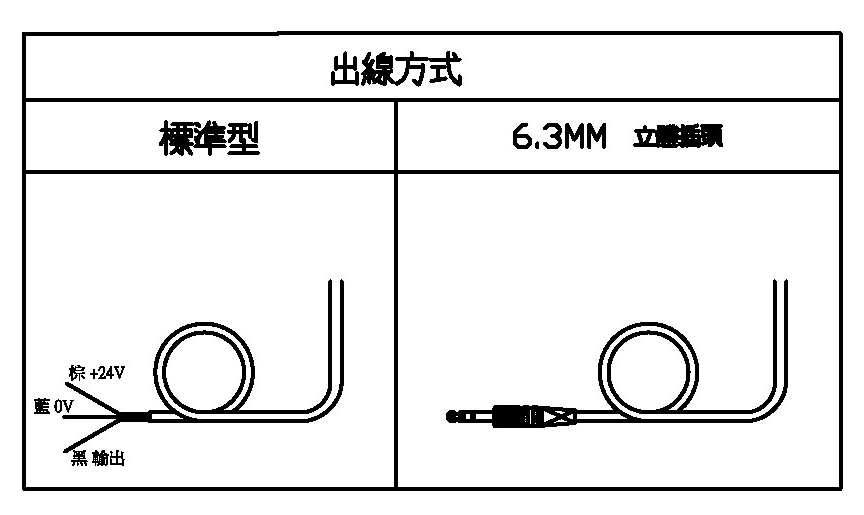

| Output Format |
NC or NPN
|
||||

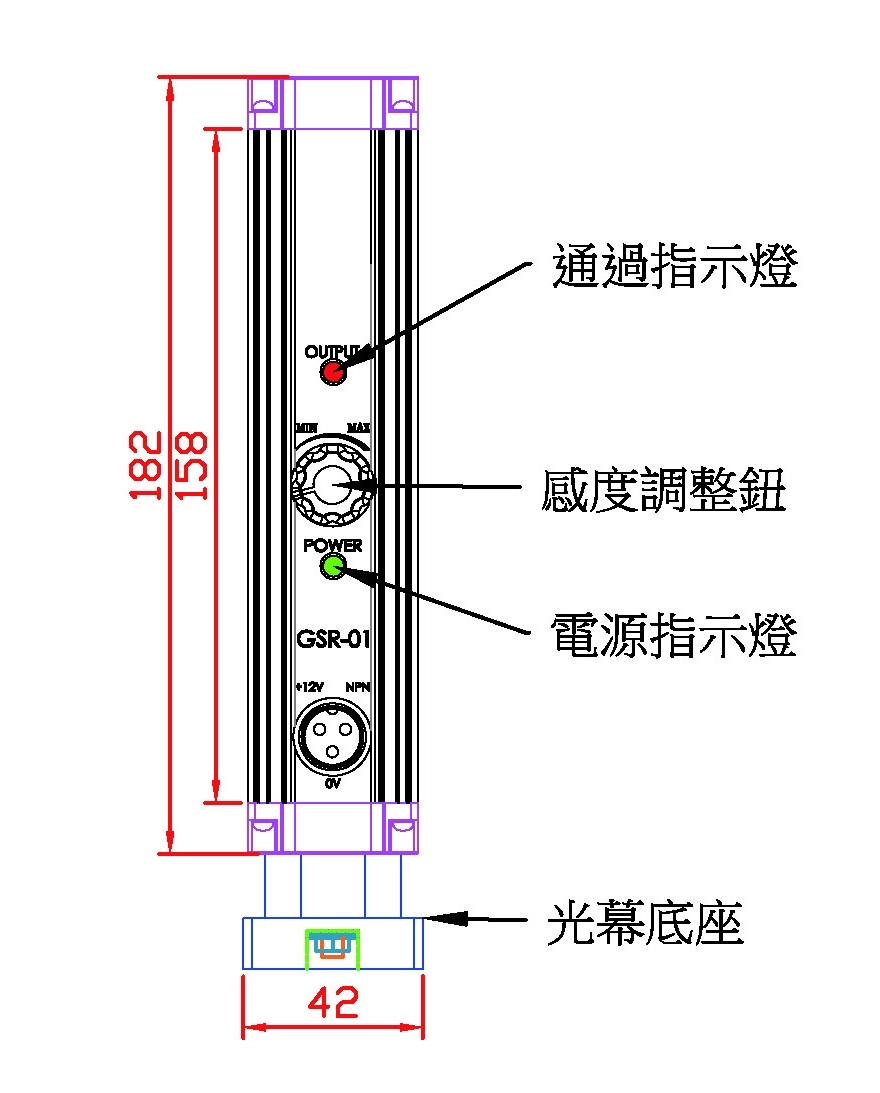

| Indicator light LED |
Green LED : Power Indicator Light
Red LED : The light turns on when an object passes
|
||||
| Operating temperature |
0℃ to +50℃
|
||||
| Enclosure rating |
IP67( Ingress Protection )Ratings
|
||||
