GA Series Factory Automation Device

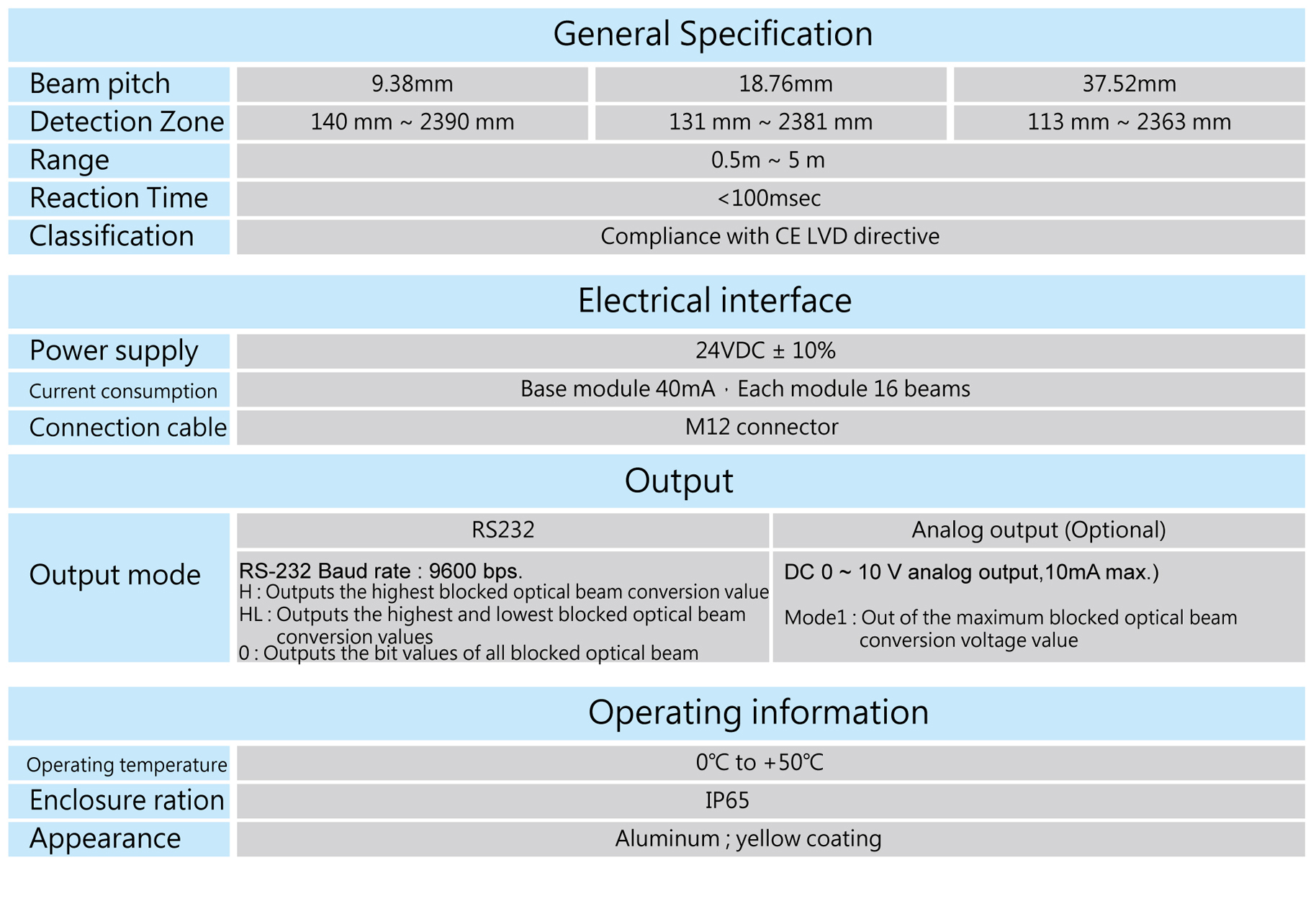

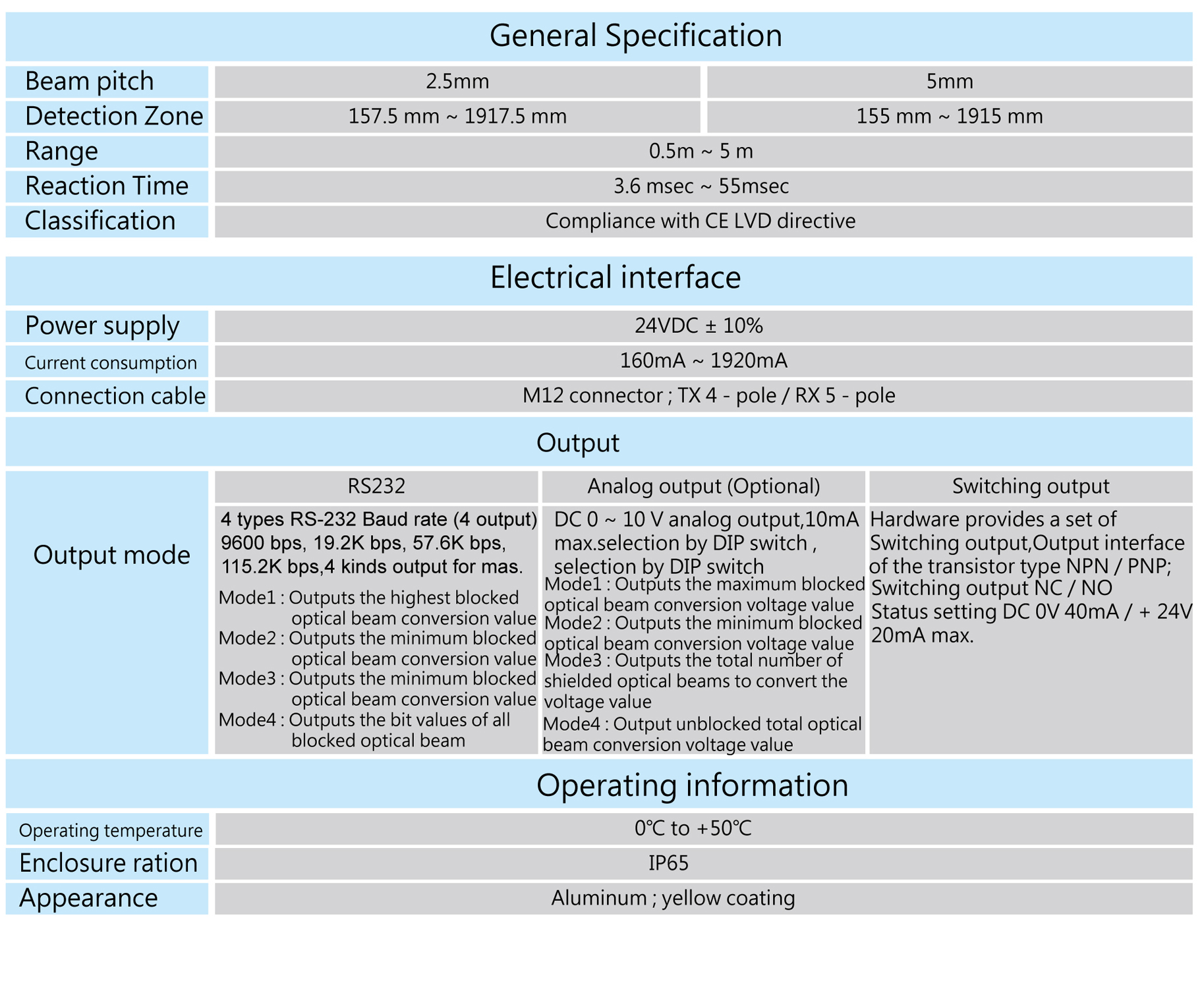

Introduction

  •    Various models, with 37.5mm、 18.75mm、 9.375mm、5mm、2.5mm  5 types beam pitch for be slected.

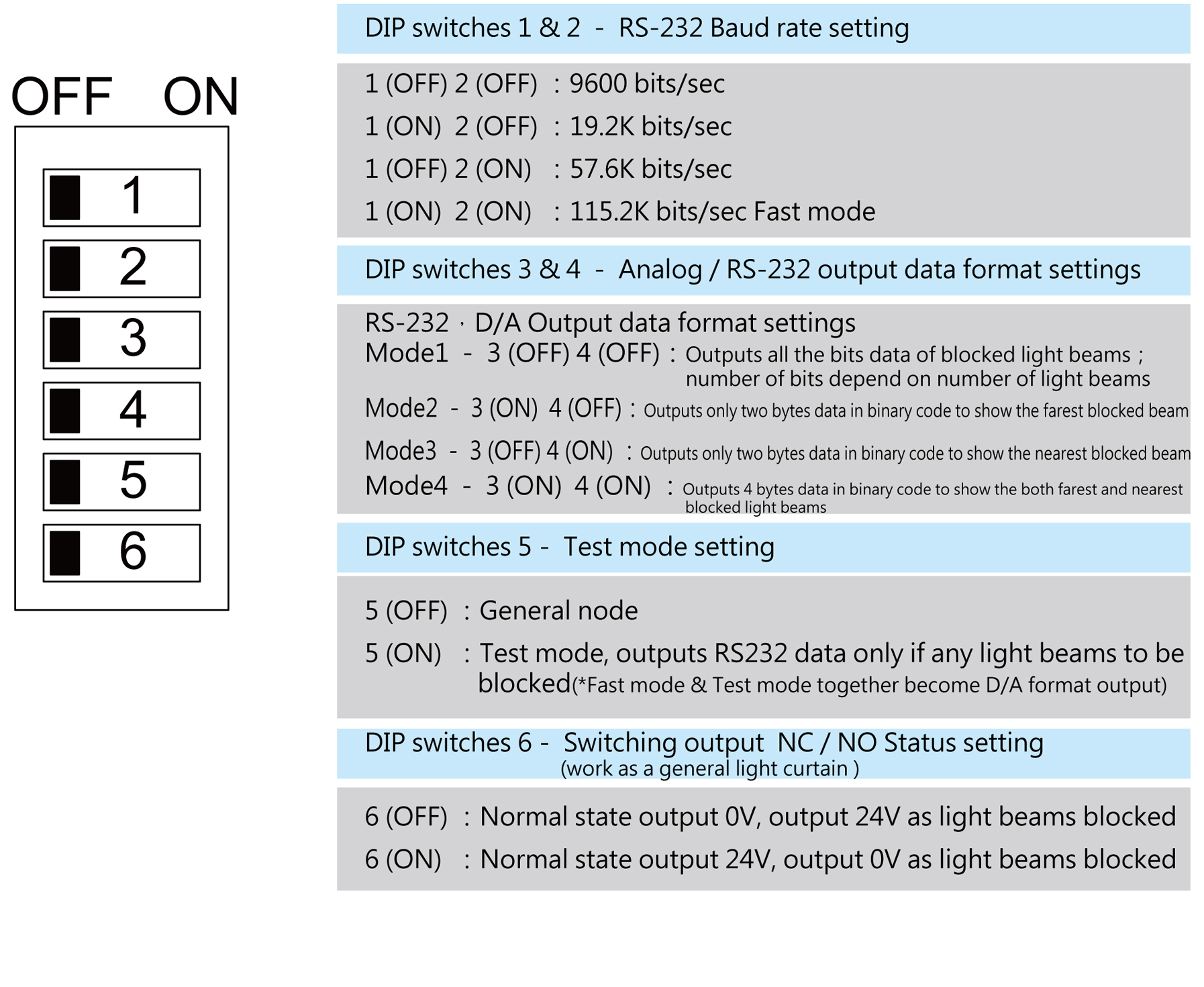

  •    Built-in RS232 & analog two type output could be slected DIP switch.
  •    Selectable output baud rate by DIP switch.

General Specification

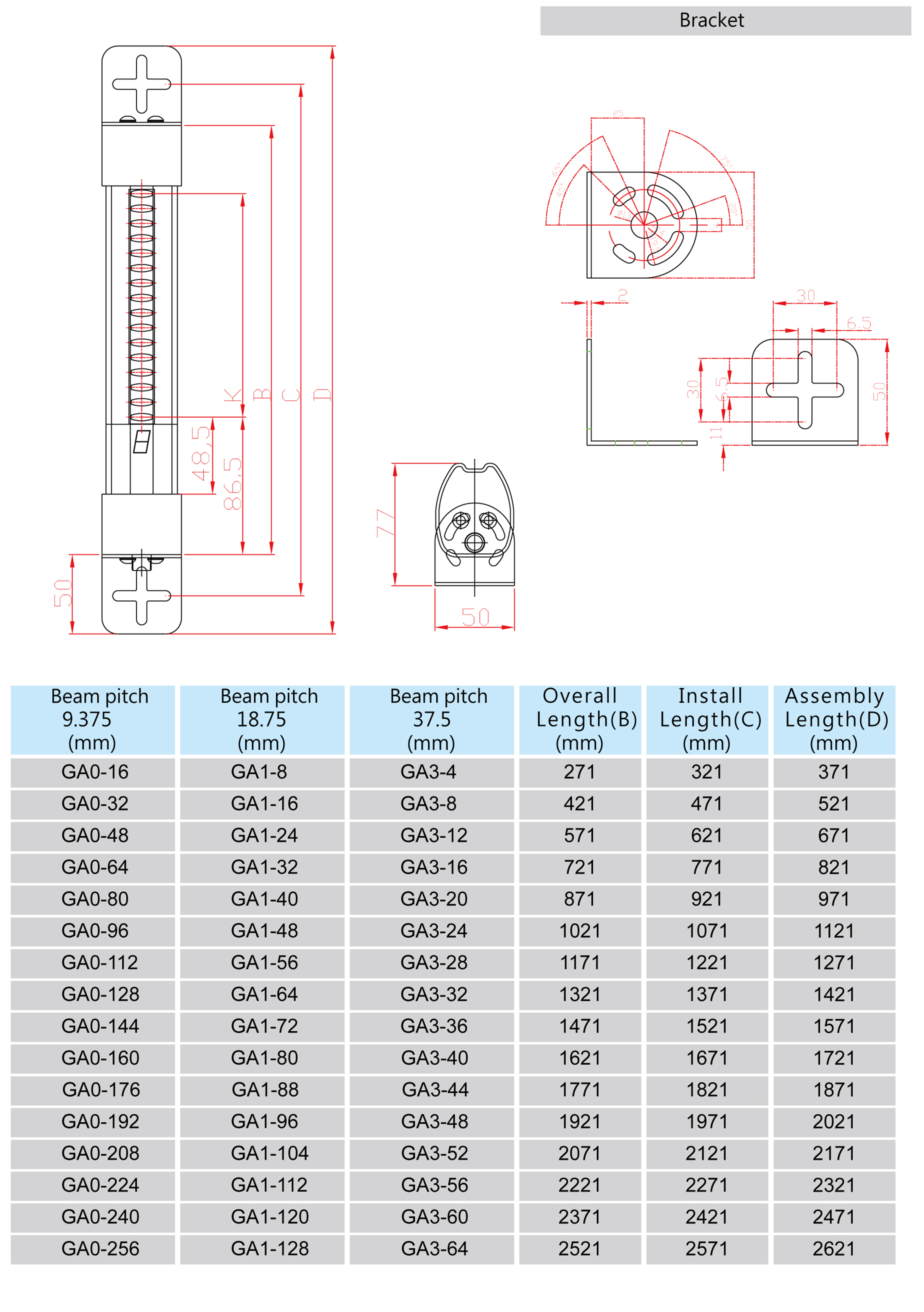

Various Model Specifications

GA0 Model & Specification
Optical Axis Pitch : 9.38mm Range : 0.5m ~ 5m
Model
Beams
Detection Zone
(DZ)(mm)
Overall Length
(B)(mm)
Install Length
(C)(mm)
Assembly Length
(L)(mm)
GA0-16
 16
140
271
321
371
GA0-32
 32
290
421
471
521
GA0-48
 48
440
571
621
671
GA0-64
 64
590
721
771
821
GA0-80
 80
740
871
921
971
GA0-96
 96
890
1021
1071
1121
GA0-112
 112
1040
1171
1221
1271
GA0-128
 128
1190
1321
1371
1421
GA0-144
 144
1340
1471
1521
1571
GA0-160
 160
1490
1621
1671
1721
GA0-176
 176
1640
1771
1821
1871
GA0-192
 192
1790
1921
1971
2021
GA0-208
 208
1940
2071
2121
2171
GA0-224 224
2090
2221
2271
2321
GA0-240 240
2240
2371
2421
2471
GA0-256 256
2390
2521
2571
2621
GA1 Model & Specification
Optical Axis Pitch : 18.76mm Range : 0.5m ~ 5m
Model
Beams
Detection Zone
(DZ)(mm)
Overall Length
(B)(mm)
Install Length
(C)(mm)
Assembly Length
(L)(mm)
GA1-8
 8
131
271
321
371
GA1-16
 16
281
421
471
521
GA1-24
 24
431
571
621
671
GA1-32
 32
581
721
771
821
GA1-40
 40
731
871
921
971
GA1-48
 48
881
1021
1071
1121
GA1-56
 56
1031
1171
1221
1271
GA1-64
 64
1181
1321
1371
1421
GA1-72
 72
1331
1471
1521
1571
GA1-80
 80
1481
1621
1671
1721
GA1-88
 88
1631
1771
1821
1871
GA1-96
 96
1781
1921
1971
2021
GA1-104
 104
1931
2071
2121
2171
GA1-112 112
2081
2221
2271
2321
GA1-120 120
2231
2371
2421
2471
GA1-128 128
2381
2521
2571
2621
GA1-136 136
2531
2671
2721
2771
GA1-144 144
2681
2821
2871
2921
GA1-152 152
2831
2971
3021
3071
GA3 Model & Specification
Optical Axis Pitch : 37.52mm Range : 0.5m ~ 5m
Model
Beams
Detection Zone
(DZ)(mm)
Overall Length
(B)(mm)
Install Length
(C)(mm)
Assembly Length
(L)(mm)
GA3-4
 4
113
271
321
371
GA3-8
 8
263
421
471
521
GA3-12
 12
413
571
621
671
GA3-16
 16
563
721
771
821
GA3-20
 20
713
871
921
971
GA3-24
 24
863
1021
1071
1121
GA3-28
 28
1013
1171
1221
1271
GA3-32
 32
1163
1321
1371
1421
GA3-36
 36
1313
1471
1521
1571
GA3-40
 40
1463
1621
1671
1721
GA3-44
 44
1613
1771
1821
1871
GA3-48
 48
1763
1921
1971
2021
GA3-52
 52
1913
2071
2121
2171
GA3-56 56
2063
2221
2271
2321
GA3-60 60
2213
2371
2421
2471
GA3-64 64
2363
2521
2571
2621

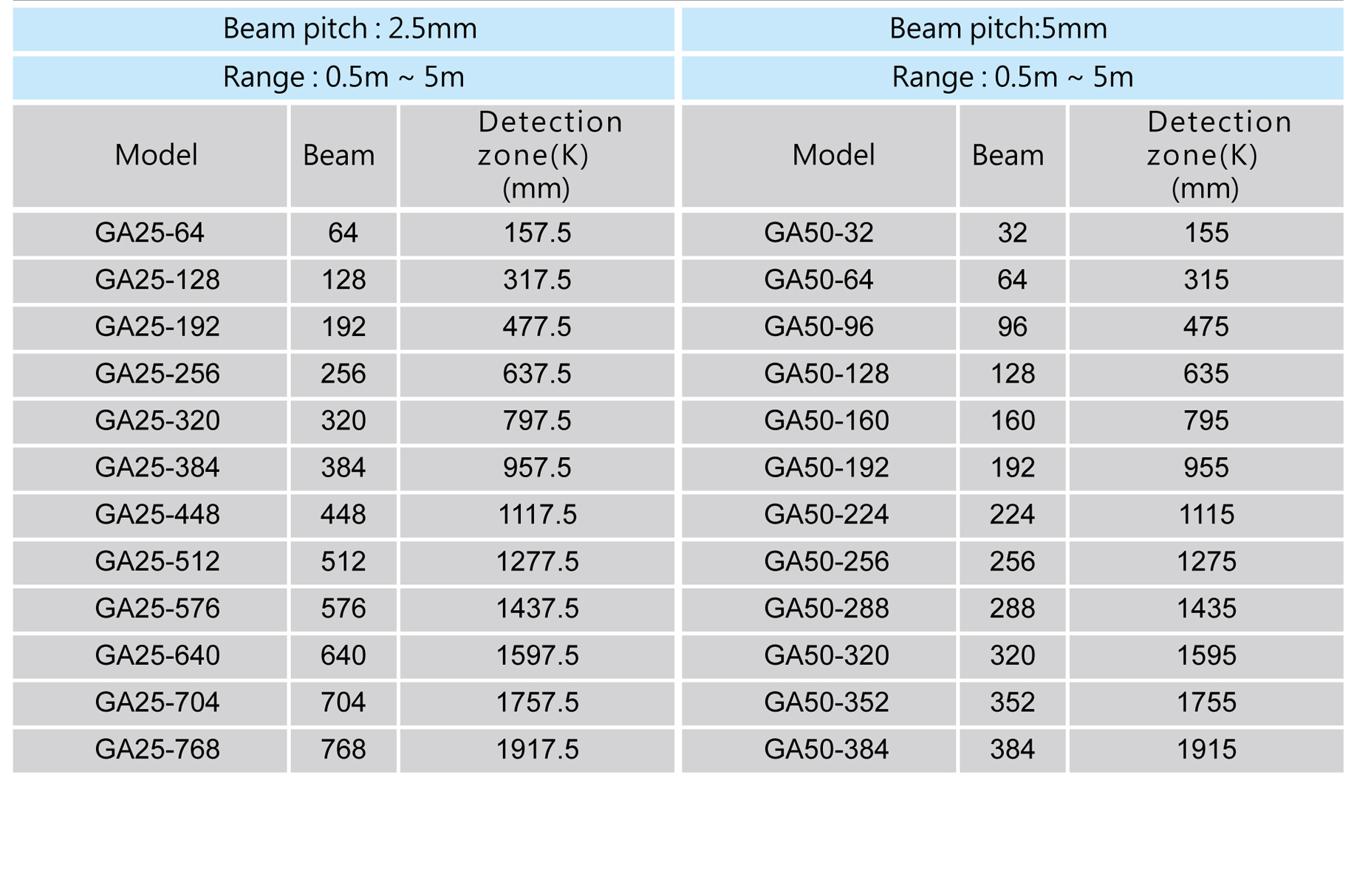

GA25 Model & Specification
Optical Axis Pitch : 2.5mm Range : 0.5m ~ 5m
Model
Beams
Detection Zone
(DZ)(mm)
Overall Length
(B)(mm)
Install Length
(C)(mm)
Assembly Length
(L)(mm)
GA25-16
 16
37.5
169
219
269
GA25-32
 32
77.5
209
259
309
GA25-48
 48
117.5
249
299
349
GA25-64
 64
157.5
289
339
389
GA25-128
 128
317.5
449
499
549
GA25-192
 192
477.5
609
659
709
GA25-256
 256
637.5
769
819
869
GA25-320
 320
797.5
929
979
1029
GA25-384
 384
957.5
1089
1139
1189
GA25-448
 448
1117.5
1249
1299
1349
GA25-512
 512
1277.5
1409
1459
1509
GA25-576
 576
1437.5
1569
1619
1669
GA25-640
 640
1597.5
1729
1779
1829
GA25-704 704
1757.5
1889
1939
1989
GA25-768 768
1917.5
2049
2099
2149
GA25-832 832
2077.5
2209
2259
2309
GA25-896 896
2237.5
2369
2419
2469
GA25-960 960
2397.5
2529
2579
2629
GA50 Model & Specification
Optical Axis Pitch : 5mm Range : 0.5m ~ 5m
Model
Beams
Detection Zone
(DZ)(mm)
Overall Length
(B)(mm)
Install Length
(C)(mm)
Assembly Length
(L)(mm)
GA50-8
 8
35
169
219
269
GA50-16
 16
75
209
259
309
GA50-24
 24
115
249
299
349
GA50-32
 32
155
289
339
389
GA50-64
 64
315
449
499
549
GA50-96
 96
475
609
659
709
GA50-128
 128
635
769
819
869
GA50-160
 160
795
929
979
1029
GA50-192
 192
955
1089
1139
1189
GA50-224
 224
1115
1249
1299
1349
GA50-256
 256
1275
1409
1459
1509
GA50-288
 288
1435
1569
1619
1669
GA50-320
 320
1595
1729
1779
1829
GA50-352 352
1755
1889
1939
1989
GA50-384 384
1915
2049
2099
2149
GA50-416 416
2075
2209
2259
2309
GA50-448 448
2235
2369
2419
2469
GA50-480 480
2395
2529
2579
2629

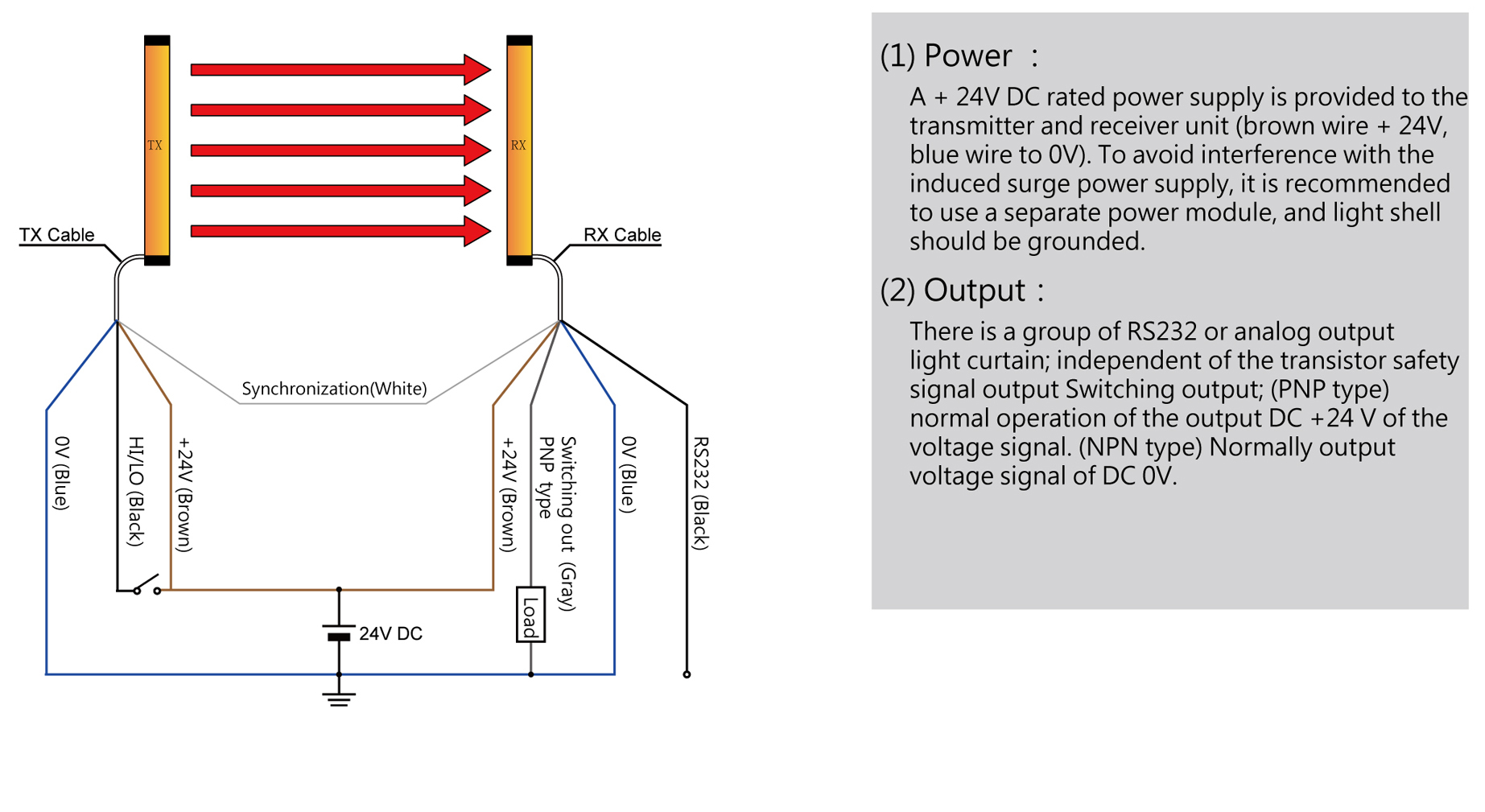

GA Series Wiring example and Status Indicators
