GCM Multi-module Multi-function safety control module

Introduction

The Multi-function safety control module is ideal for flexibility and economy.

SMARTSCAN offers a variety of solutions :MUTE, A contact (NO), B contact (NC), warning output, double safety emergency stop, external monitoring, manual reset / automatic reset, to meet customer needs.

Characteristics

  •    AC 110V/AC220V power supply
  •    MUTE Multi-functional Key bypass safety light curtain function.
  •    Maximum of 4 sets of A contact point (NO) or B contact point (NC) outputs.
  •    Maximum 2 sets of safety light curtains can be controlled.
  •    Metal Casing.

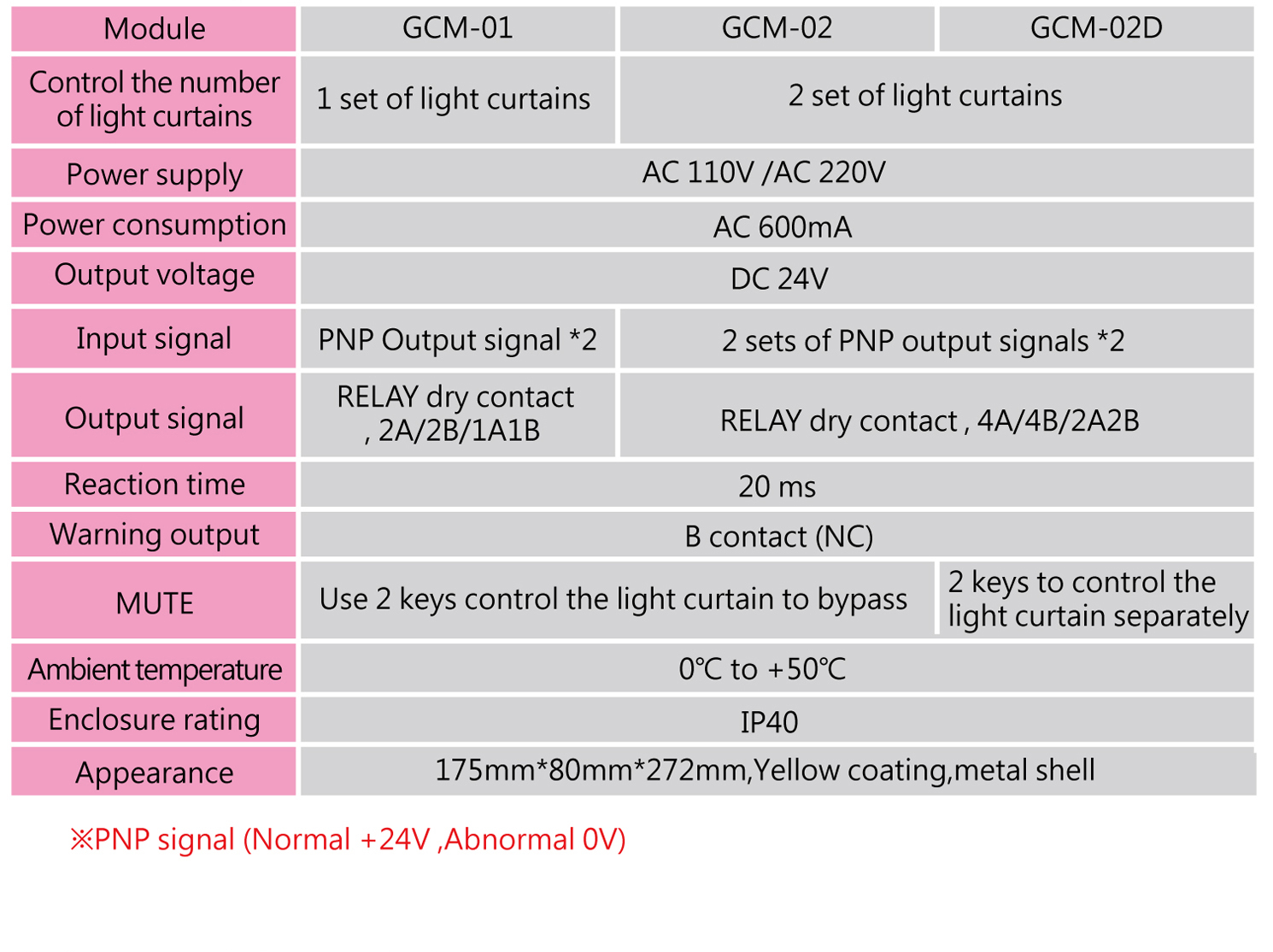

General Specifications

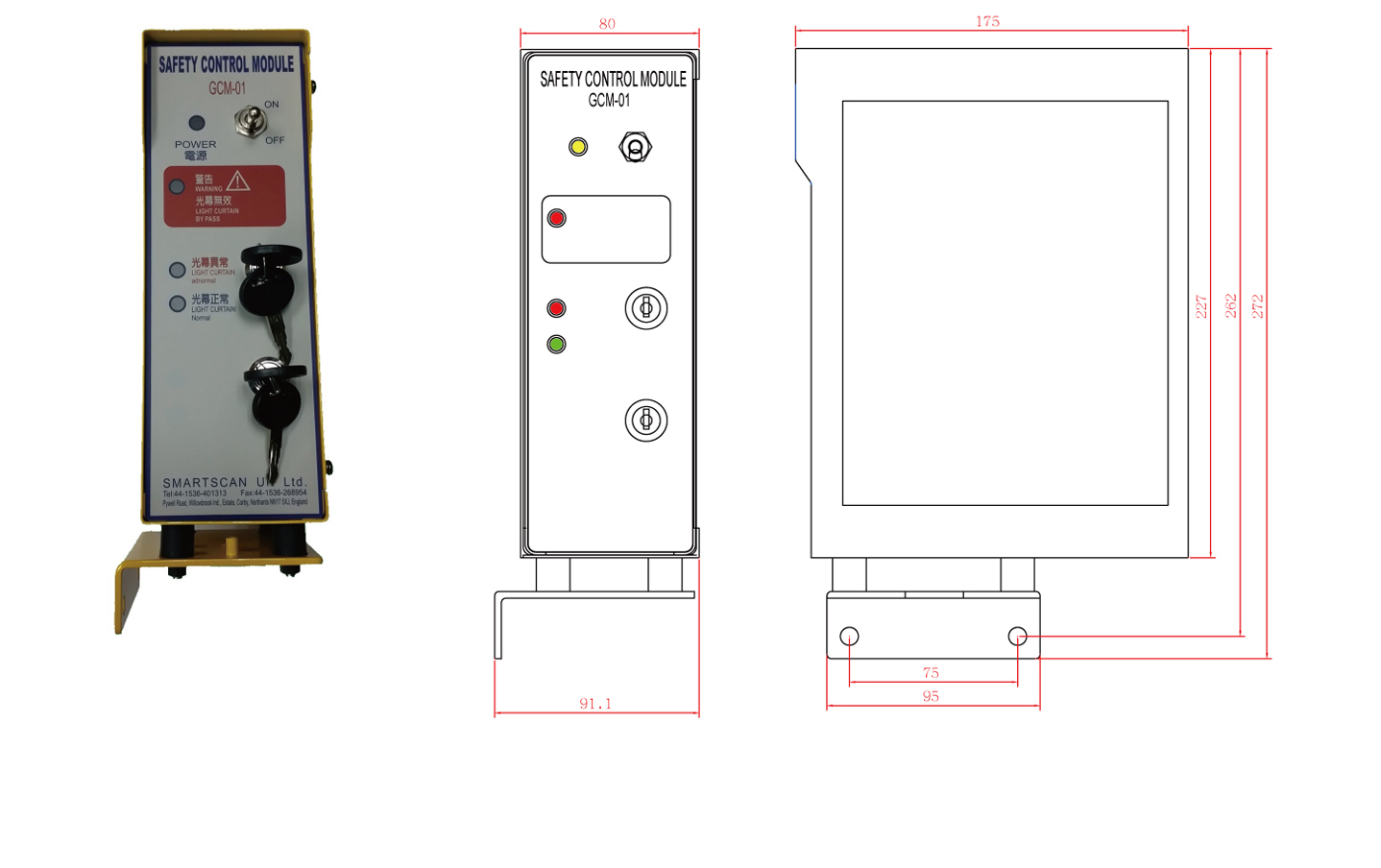

GCM Multi-module appearance

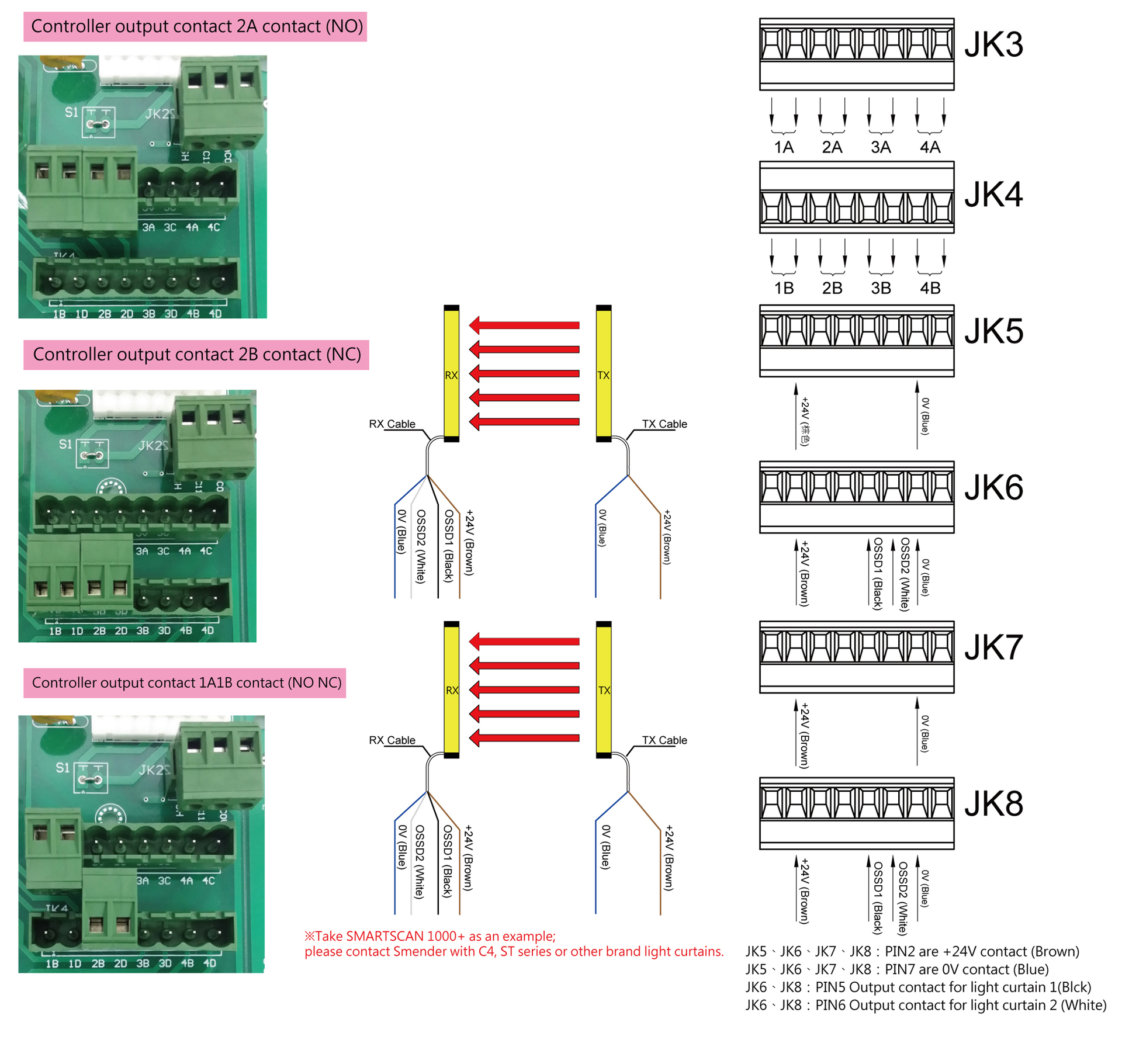

GCM Multi-module Electric Connection

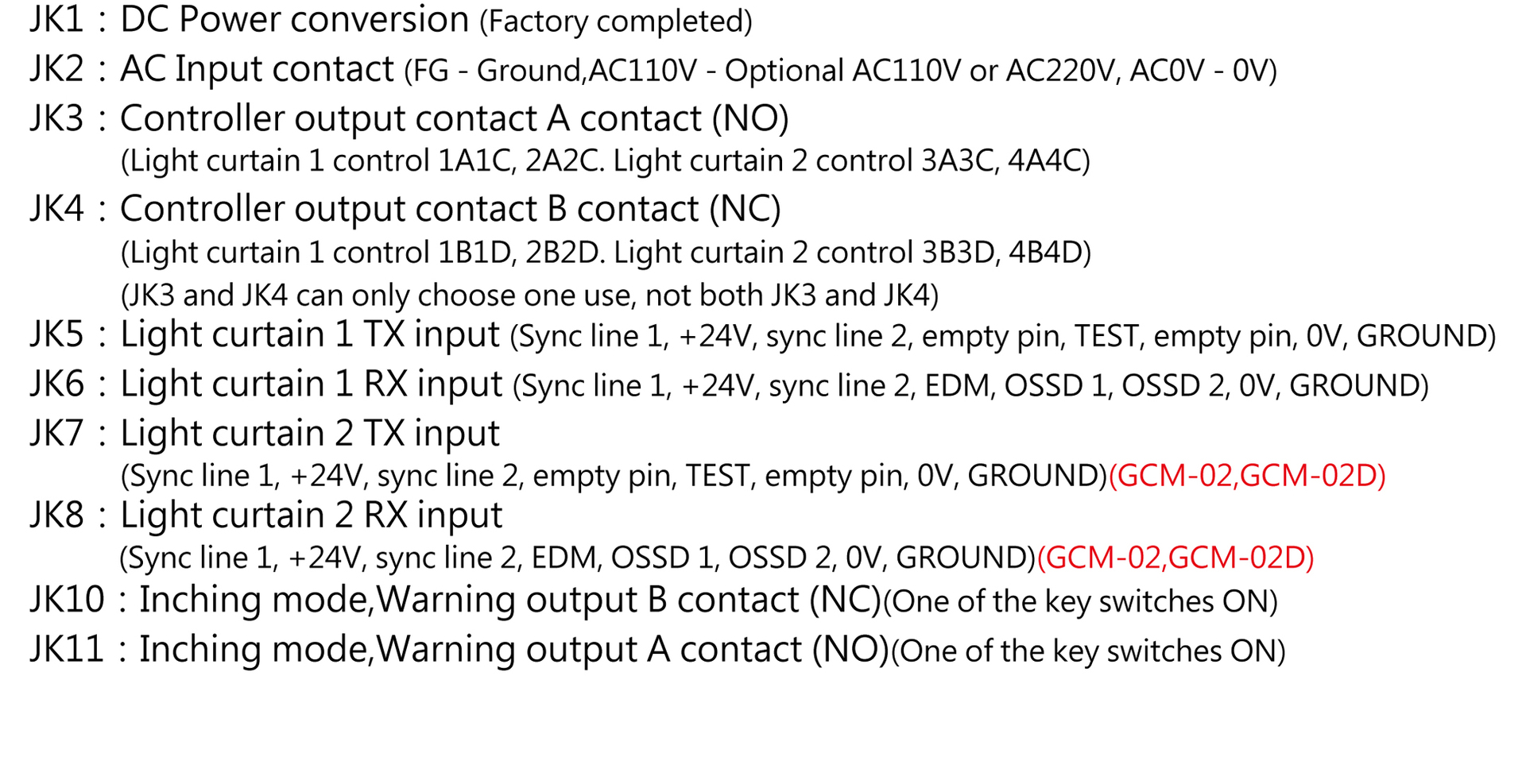

GCM Multi-module Eectric Connection Introduction
