C4M Safety control module

Introduction

The C4M Safety control module can provide the C4-1XX and C4-2XX series with a more easier to turn on or turn off the erxtra special functions,incloude mute, floating and fixed  blanking functions.

It is easy to switch by key to achieve mute , floating and fixed blanking  functions.

Characteristics

  •    Stamping Press Control host.
  •    Import AC 110V~220V.

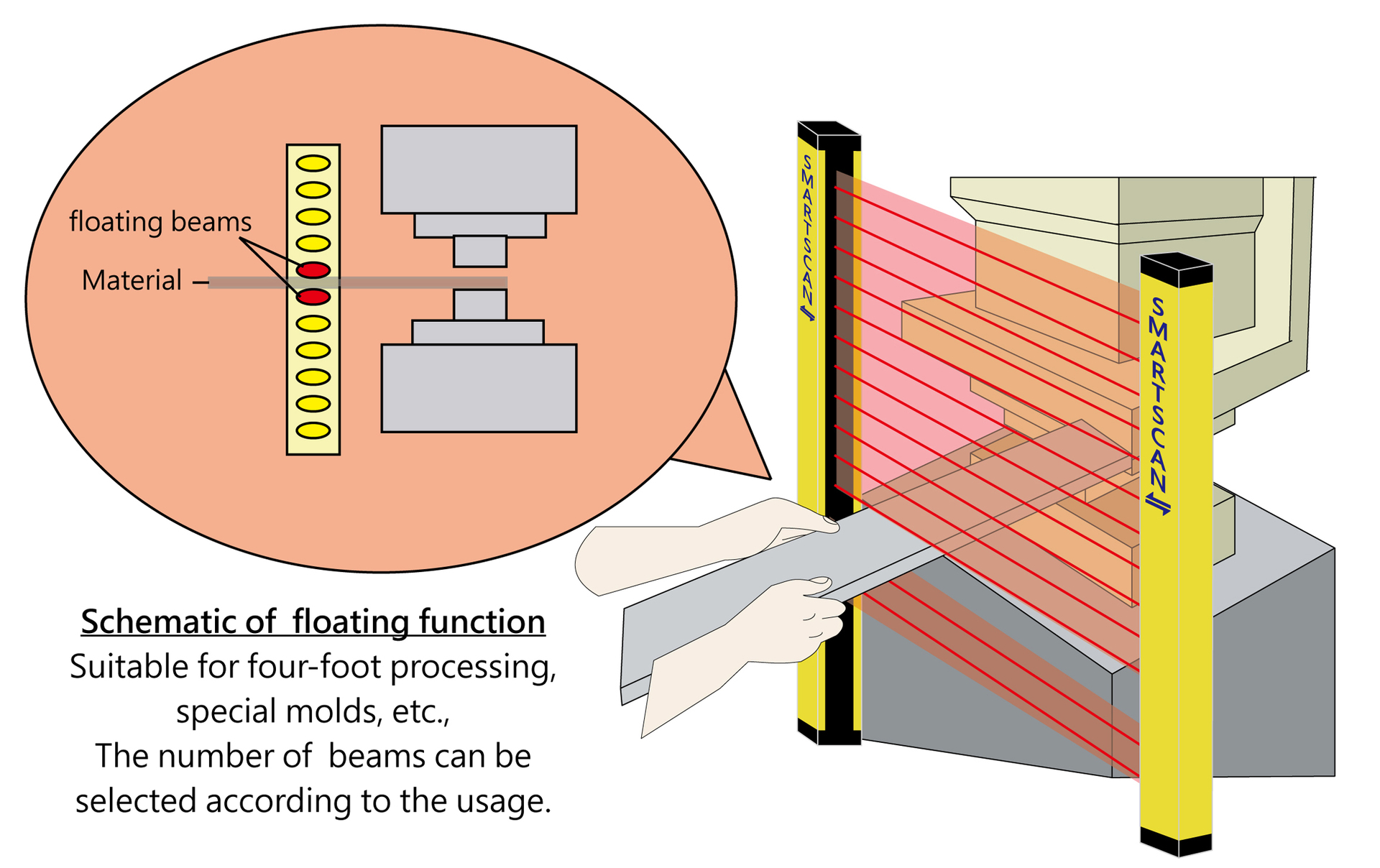

  •    Light Curtain Control BYPASS, Floating Blanking, Fixed Blanking.
  •    Protective Height and Material bridging design.

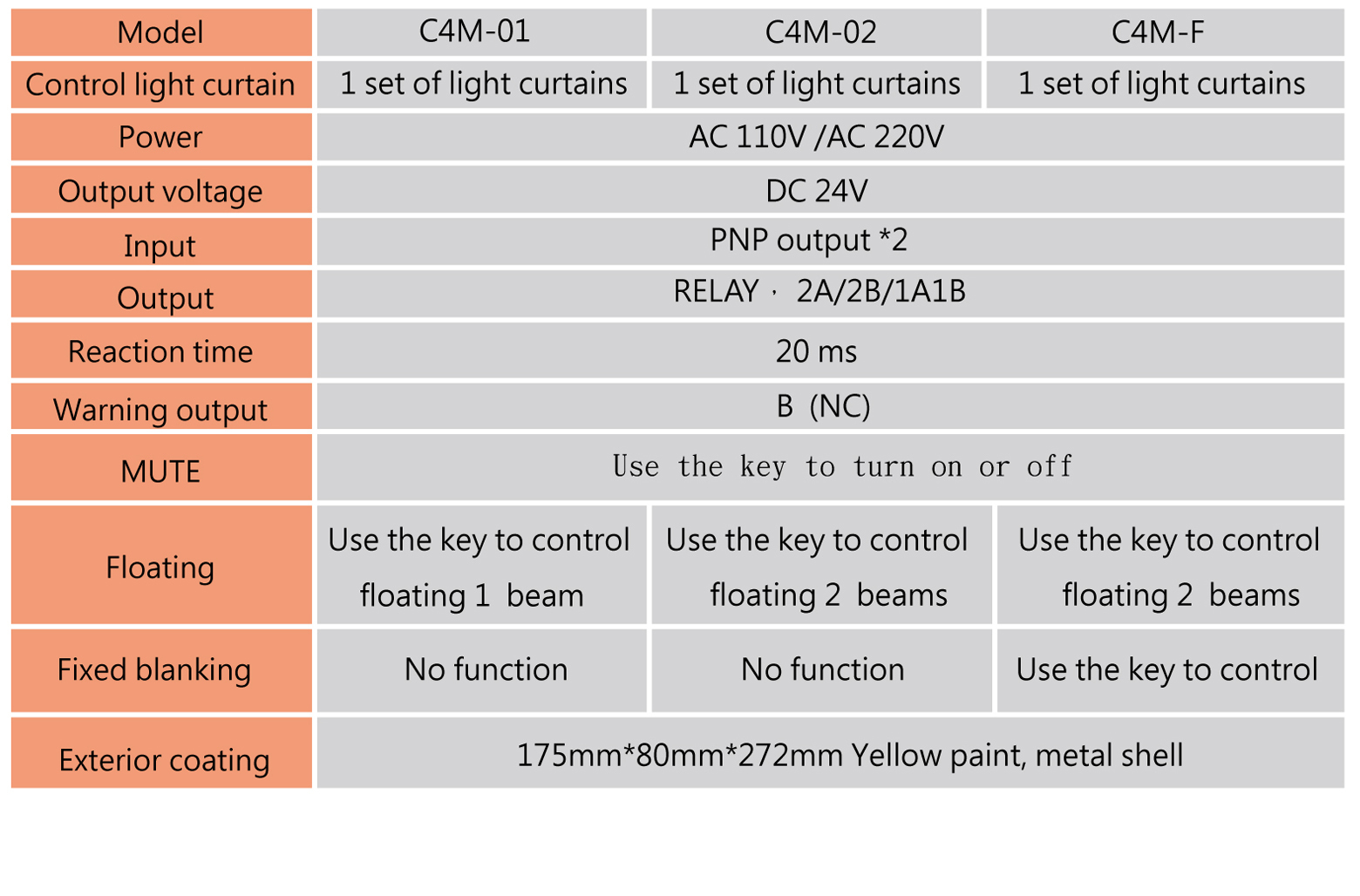

General Specifications

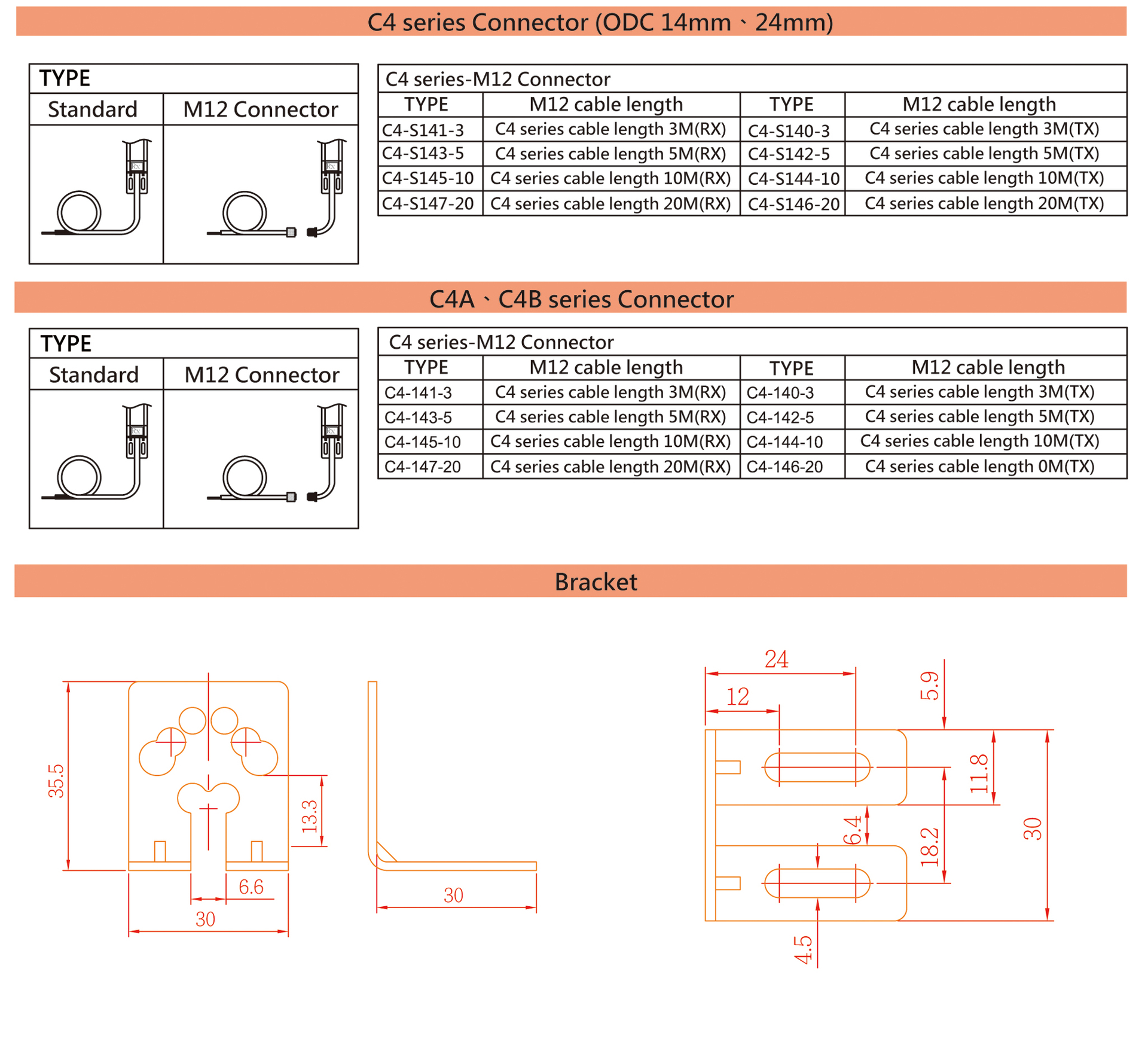

Accessories

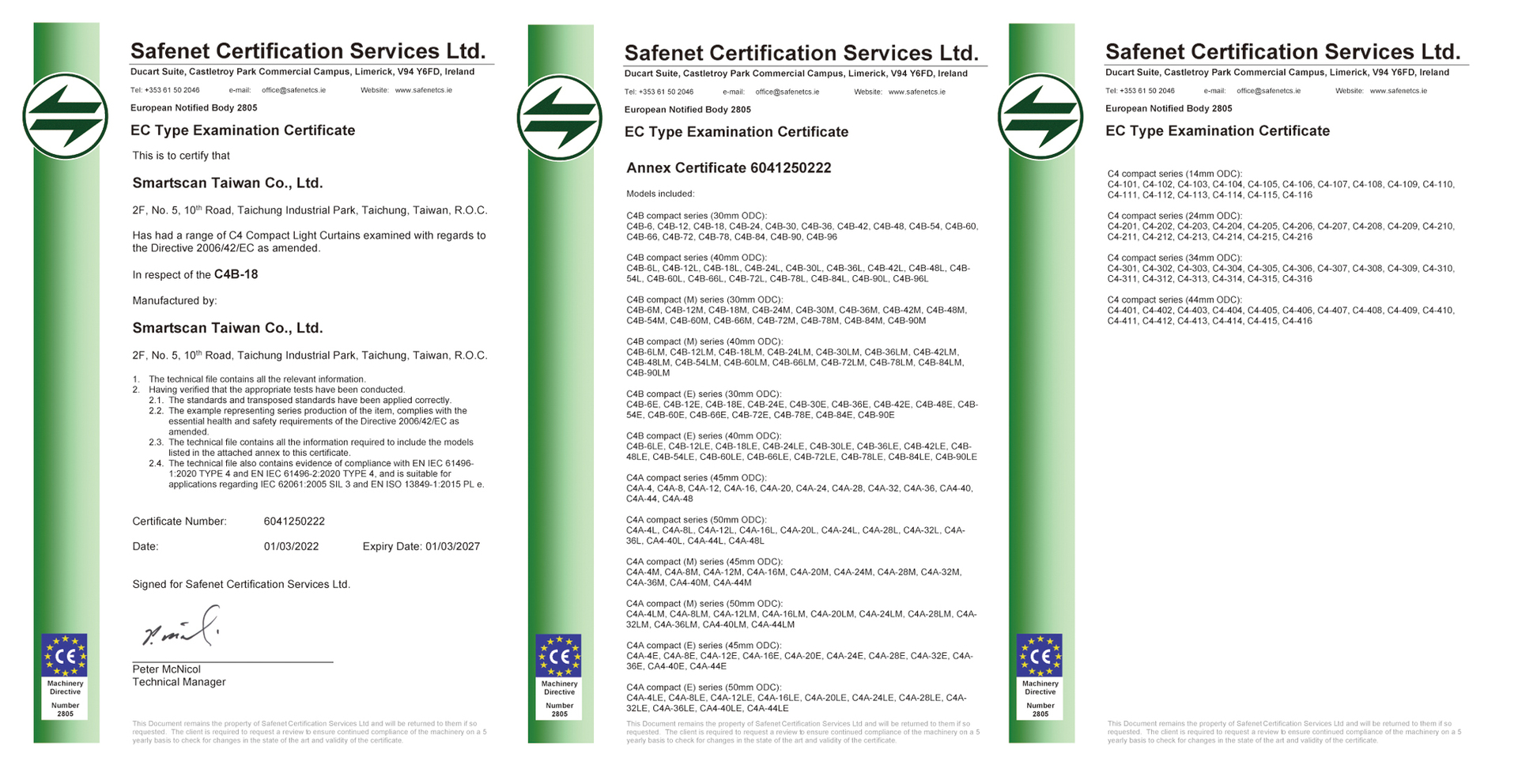

Safety certificate
