011 Series Safety Control Module

Characteristics

  •    DC 24V power supply
  •    Double safety emergency stop
  •    External Monitoring (EDM).
  •    Manual reset/automatic reset.
  •    Up to 2 sets of A contact (NO) or B contact (NC) output.
  •    MUTE Function.
  •    Use the key to turn on the MUTE mode,and let the light curtain  to bypass.
  •    Plastic shell.

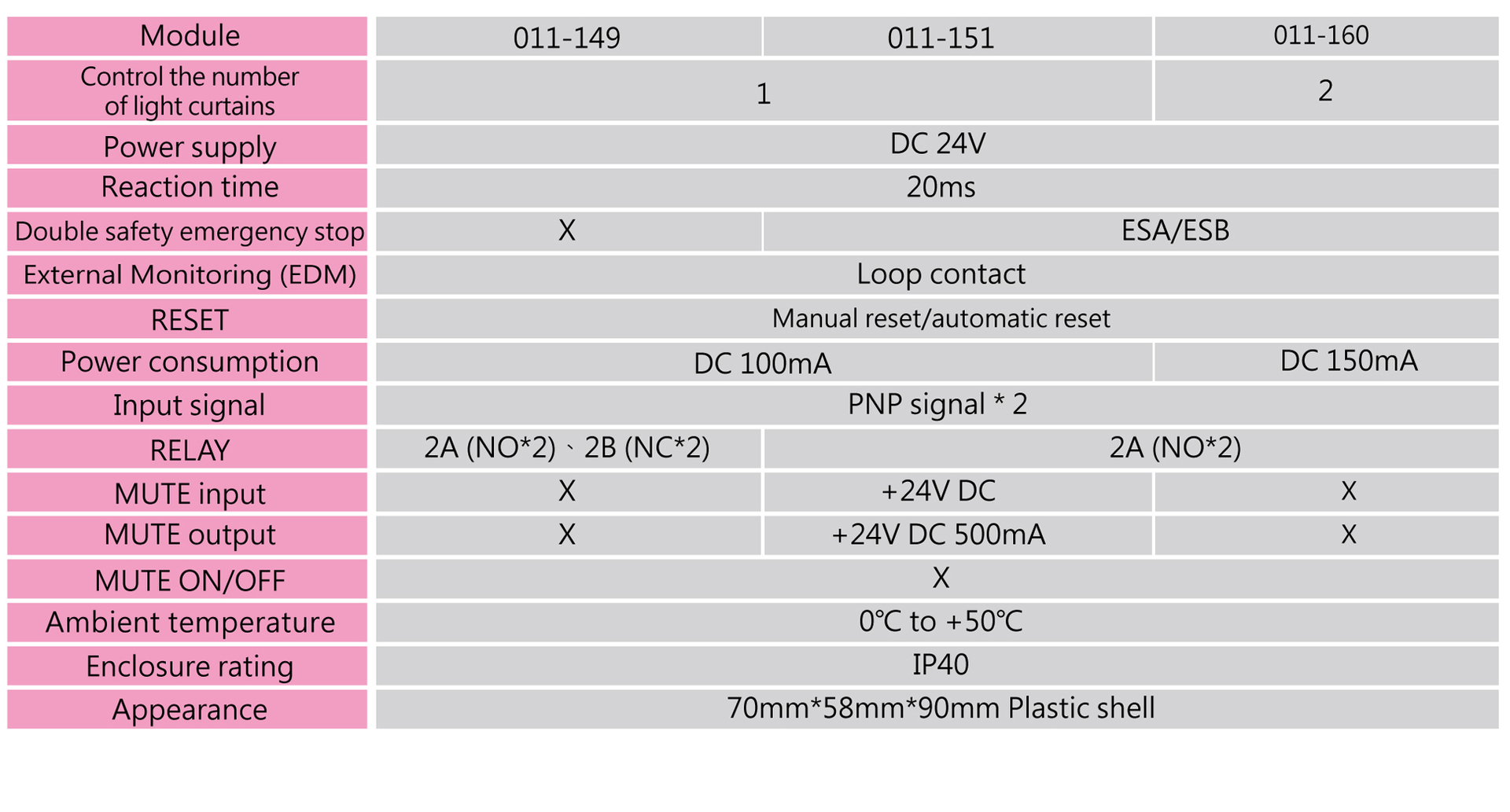

011  Multi-module General Specifications

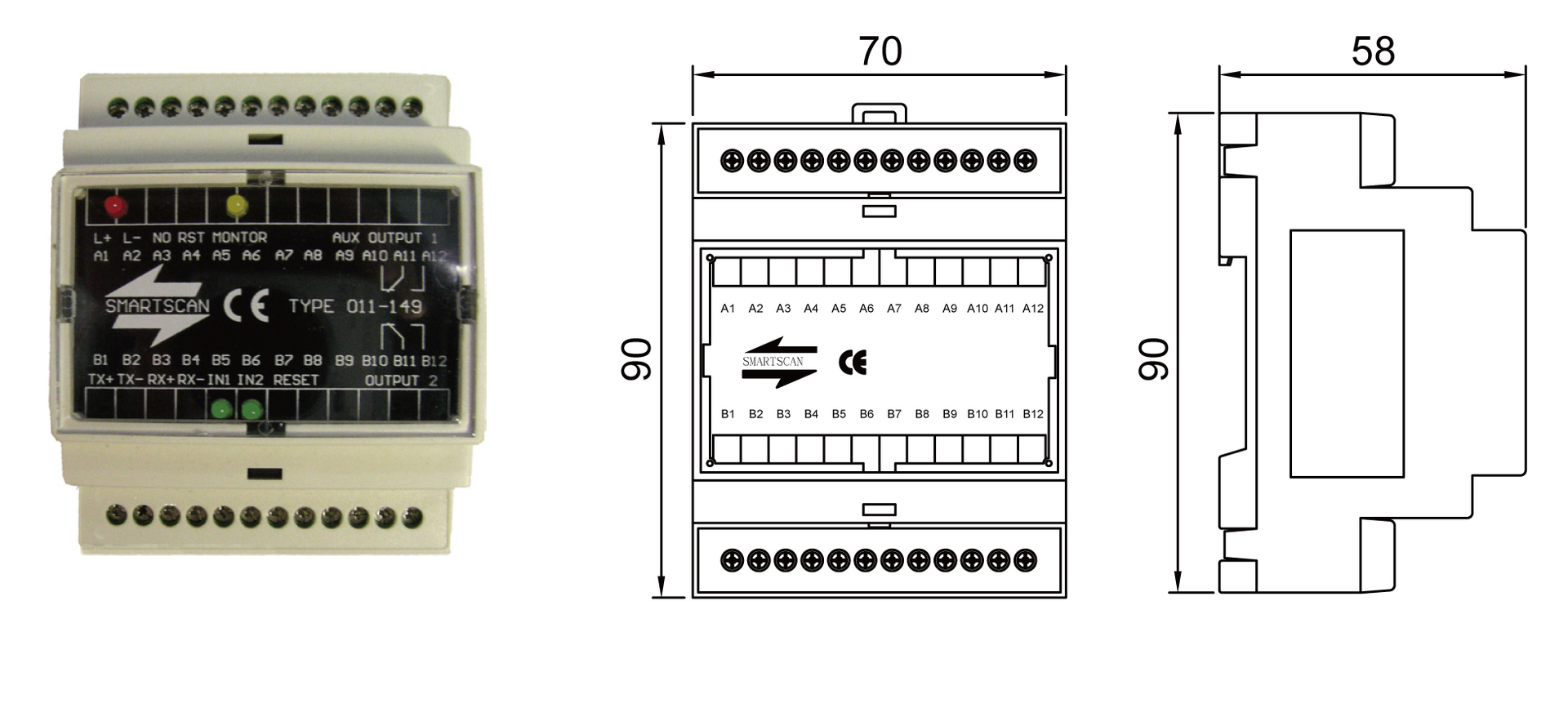

011 Multi-module appearance

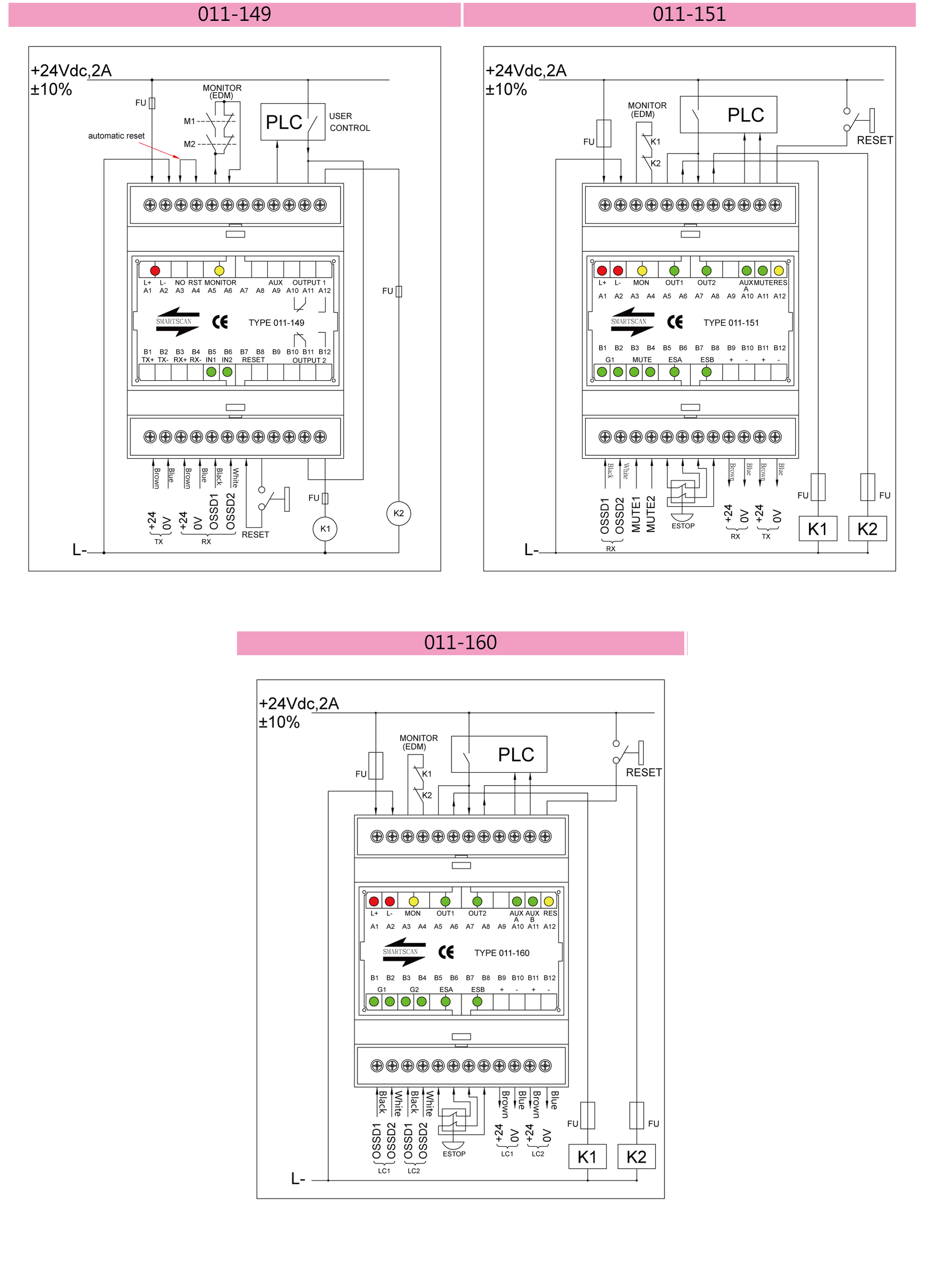

011 Multi-module Electric Connection
