C4 compact Machine Safety Devices

Characteristics

  •   Small appearance, suitable for various industrial equipment
  •   CE international safety certification,  typel 4 certification
  •   ISO 13849-1 PL e、ISO 62061 SIL 3
  •   IEC 61496-1、IEC61496-2 TYPE 4
  •   With self-diagnosis function and working status indicator light
  •   C4-1XX, C4-2XX have built-in floating and fixed
  •   automatic reset and manual reset functions (C4A, C4B)

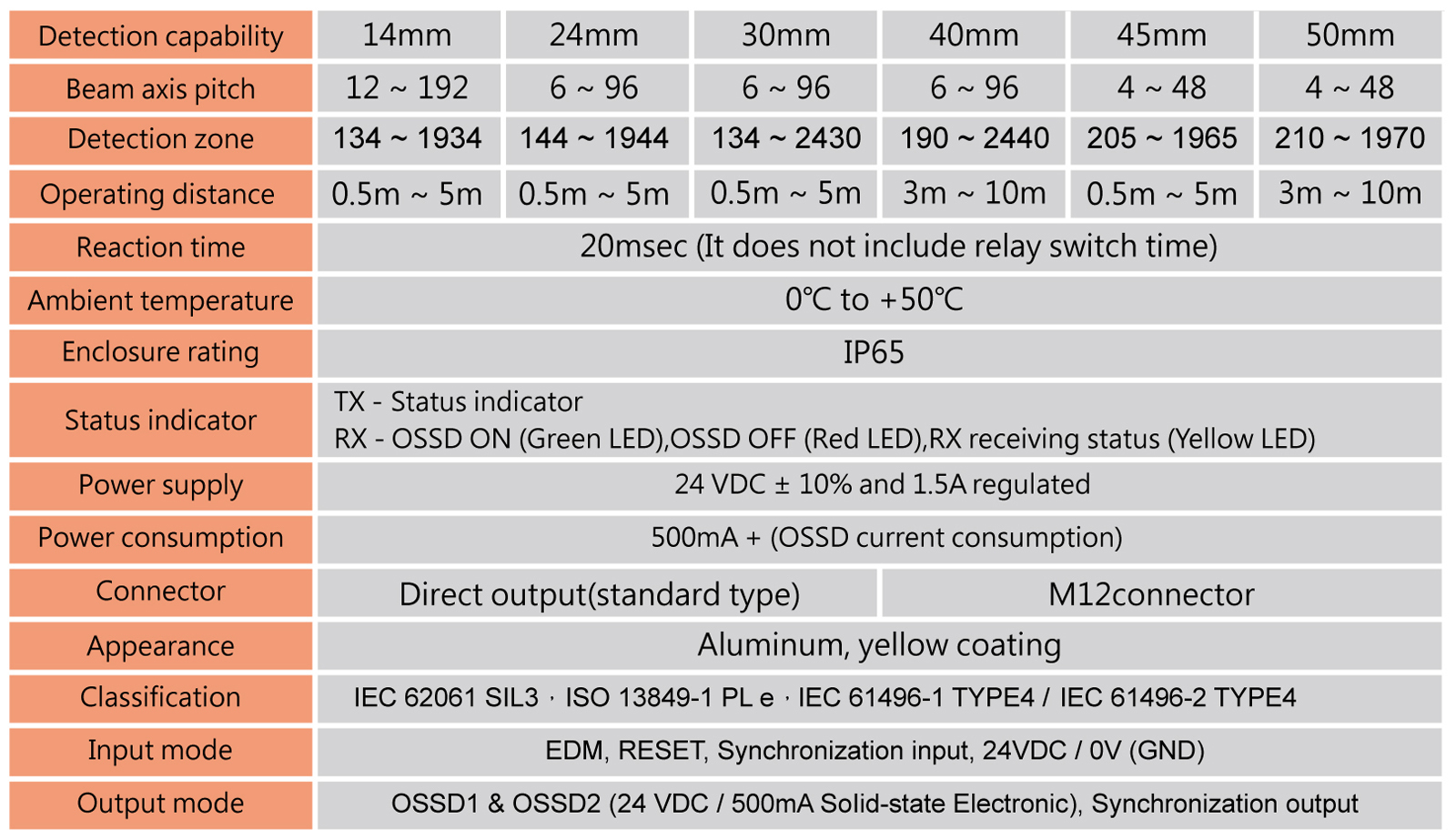

General Specifications

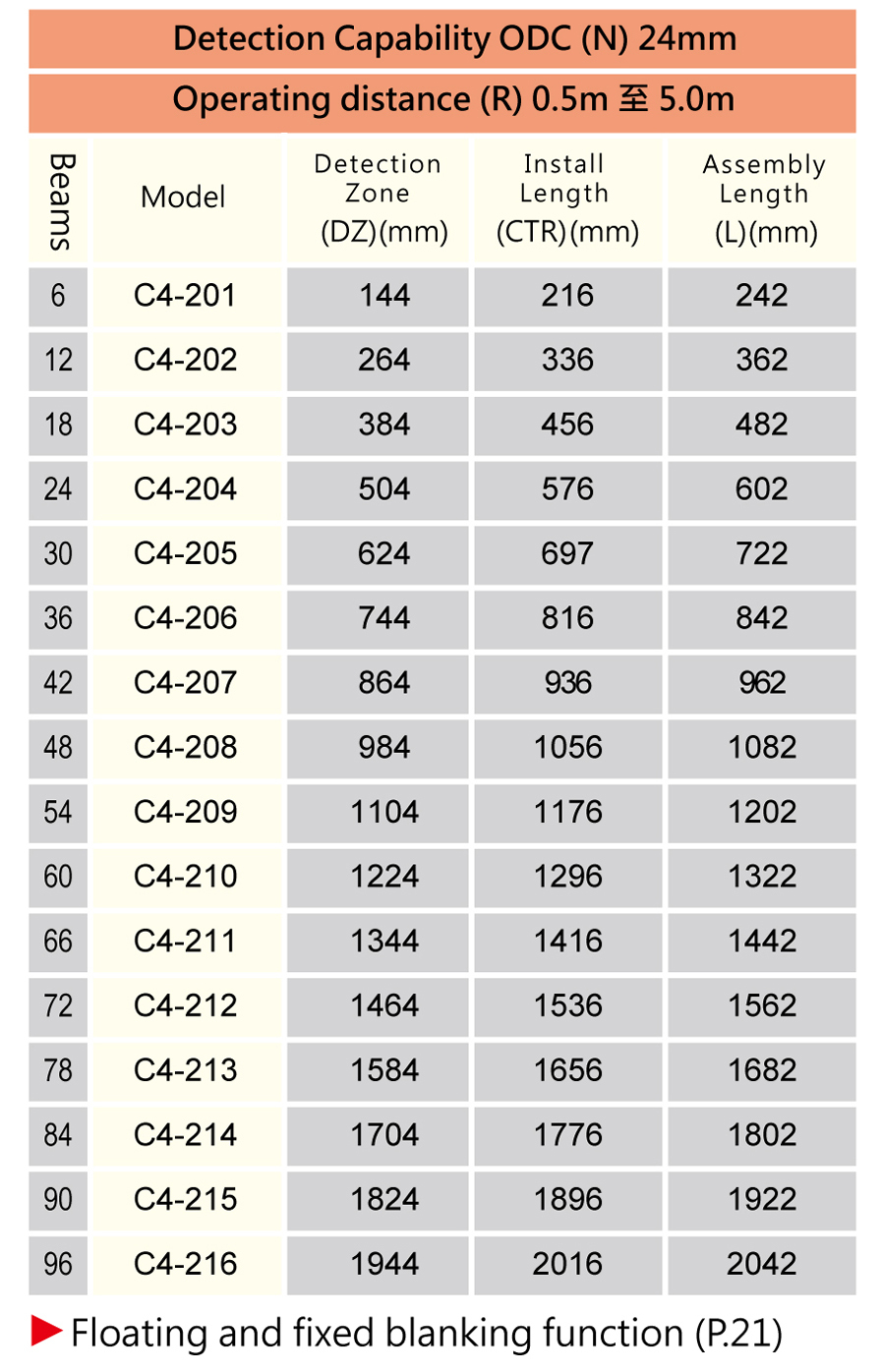

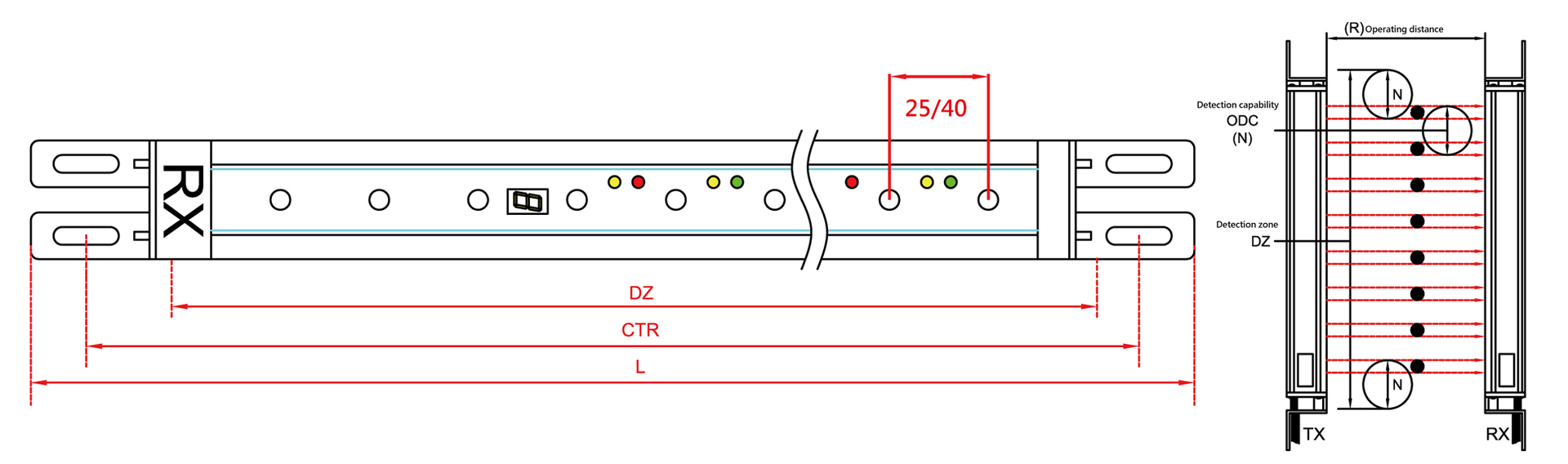

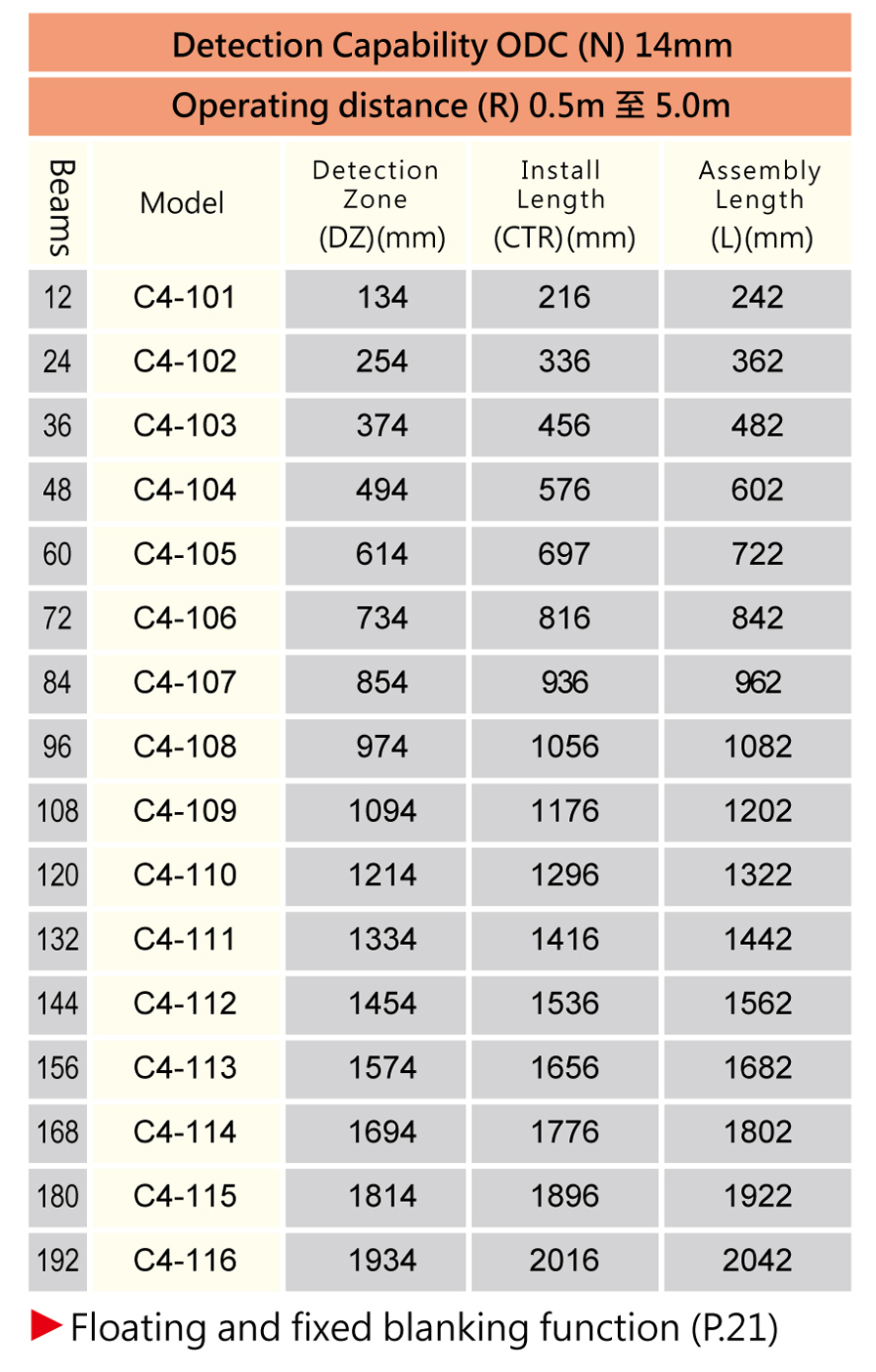

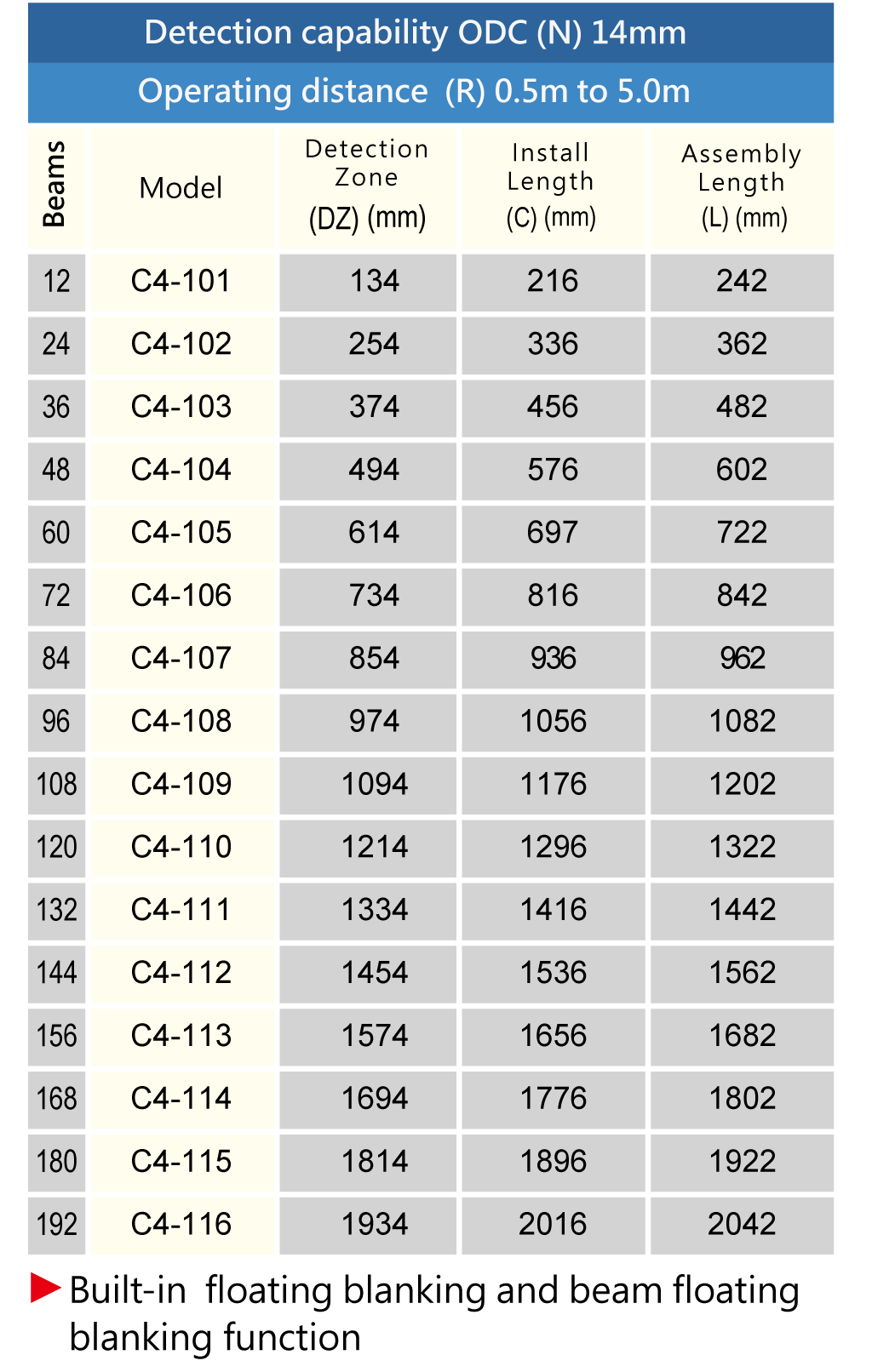

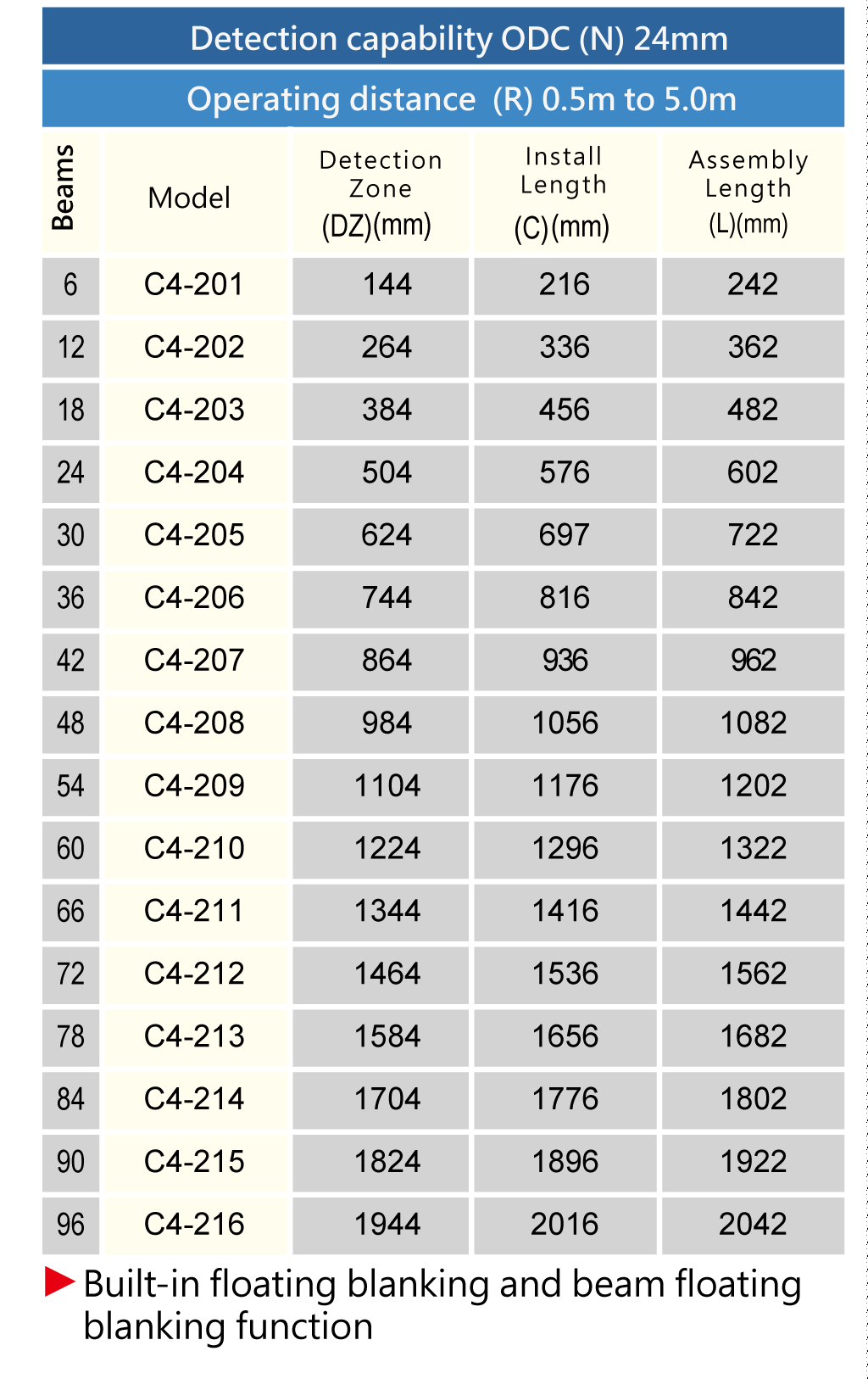

C4  Series

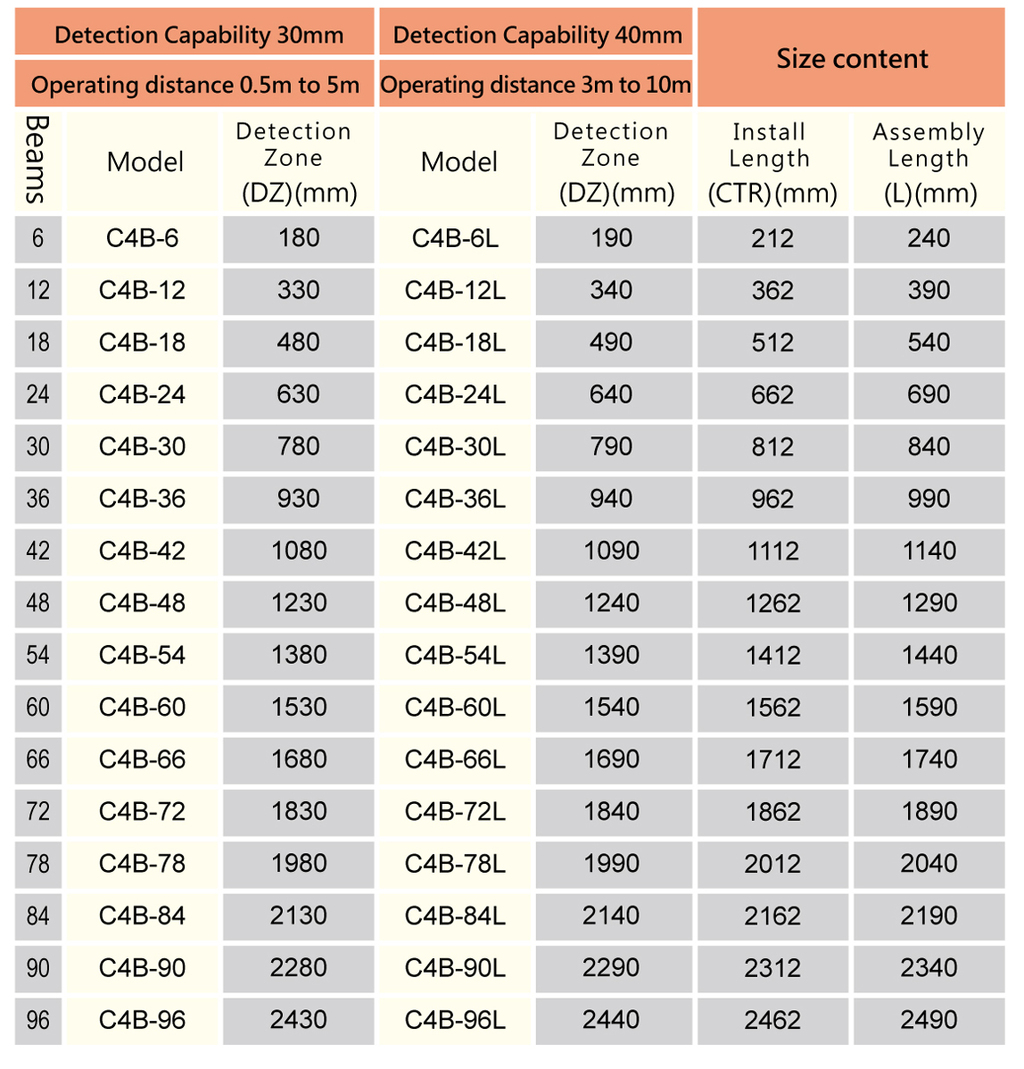

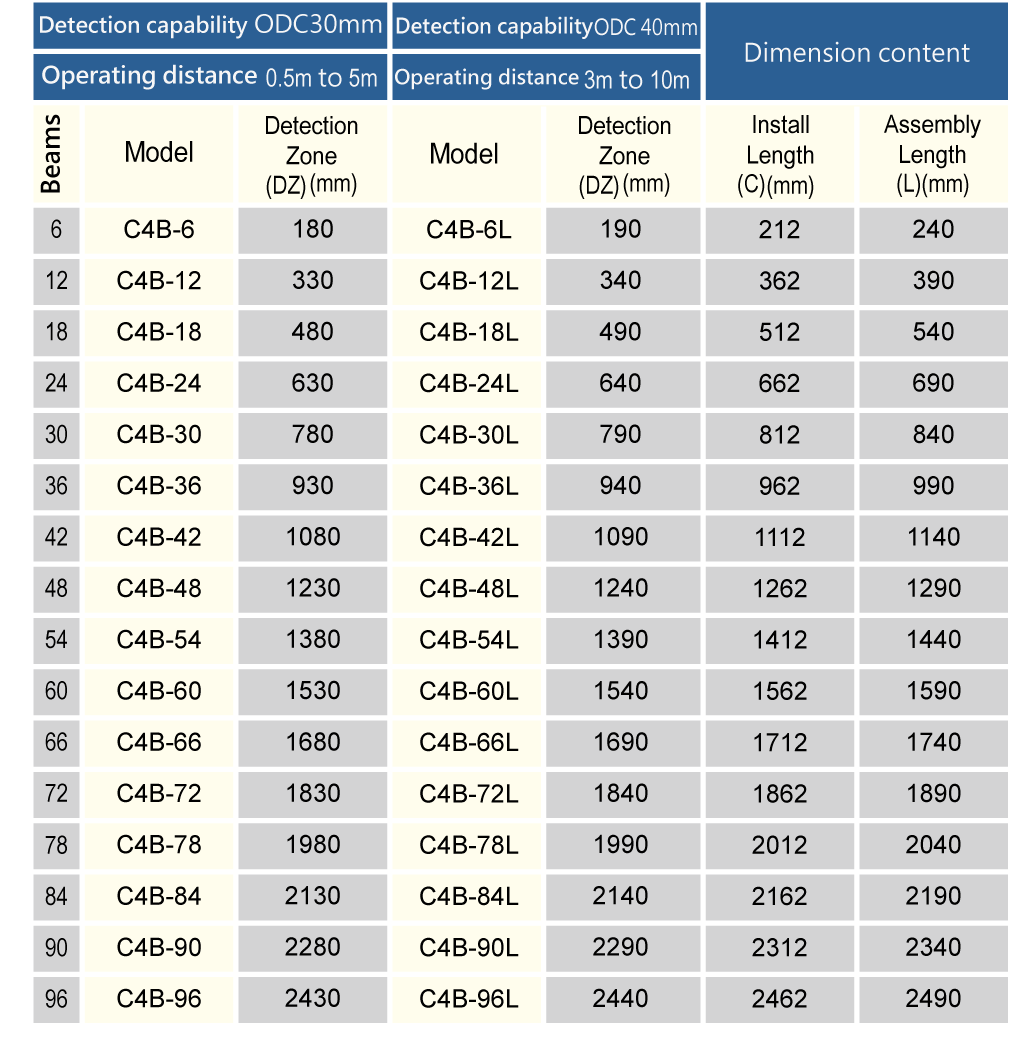

C4B series

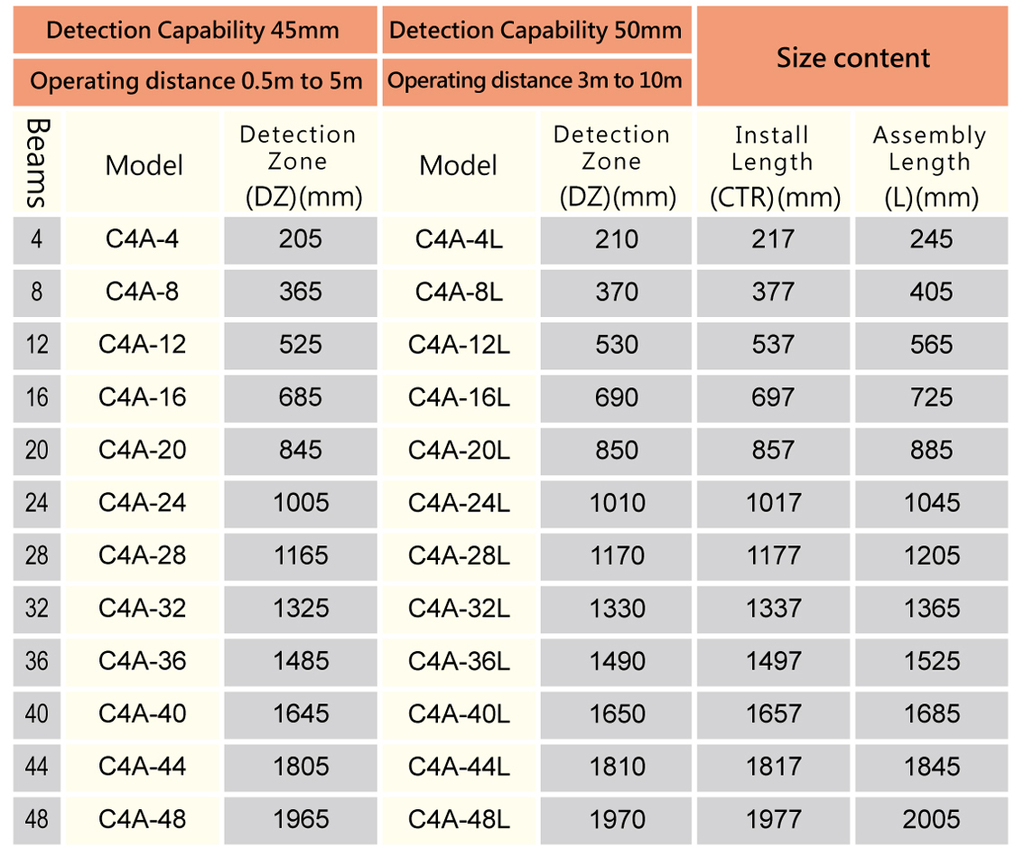

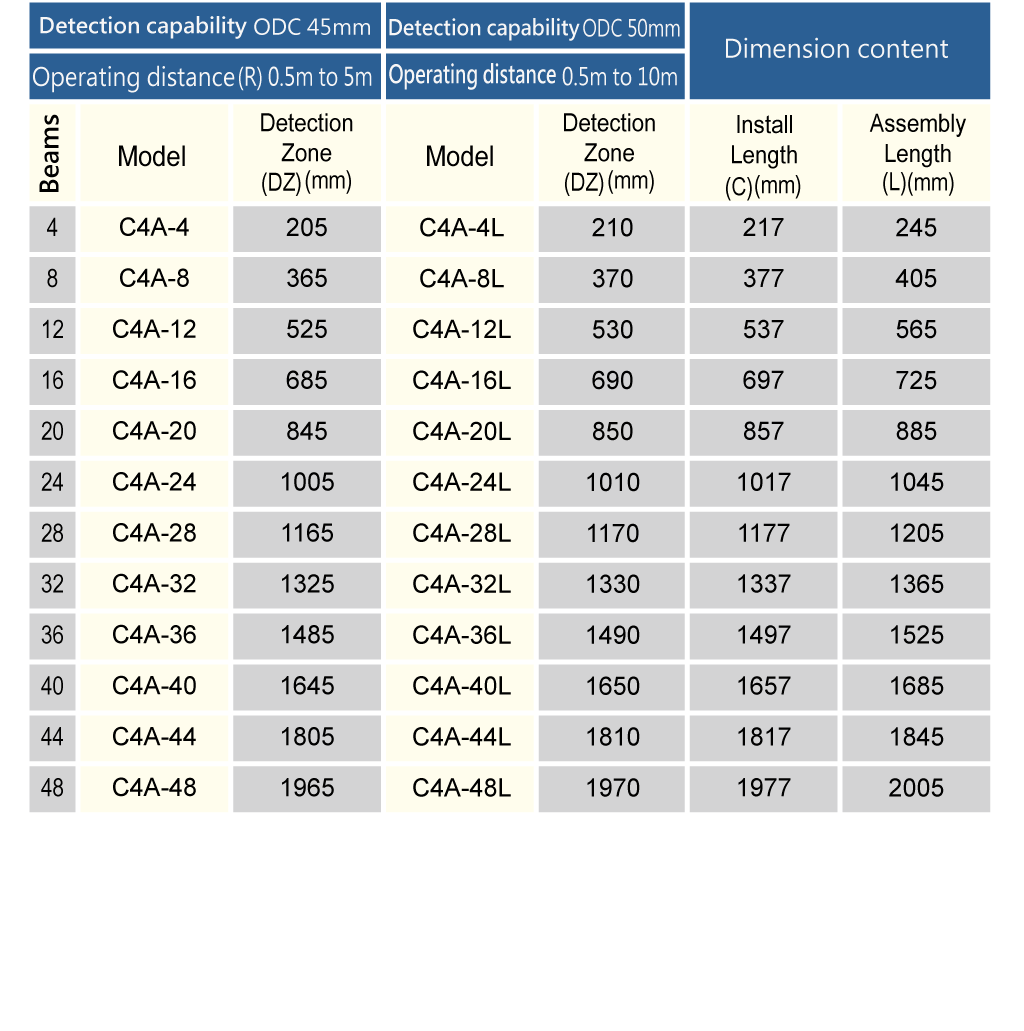

C4A series

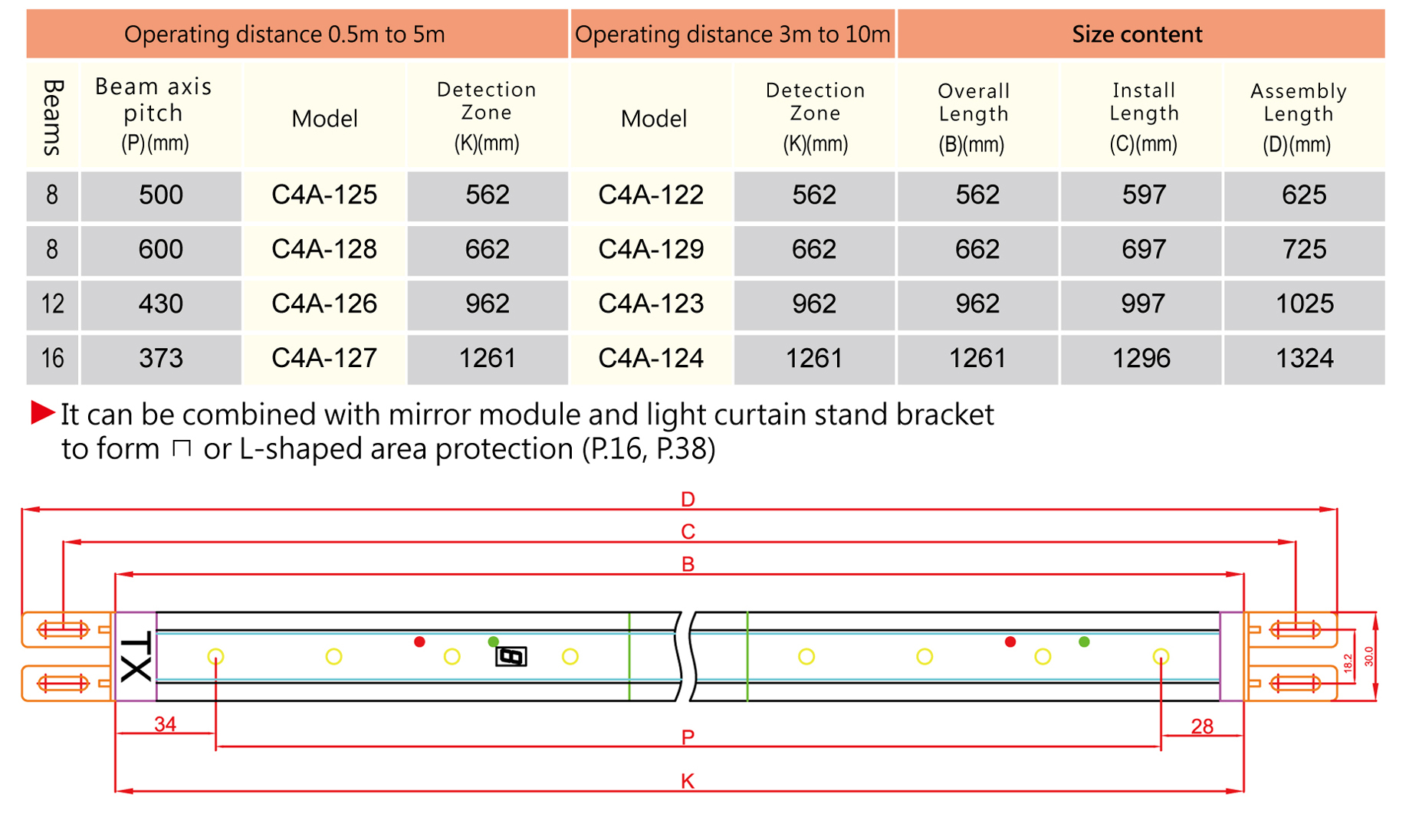

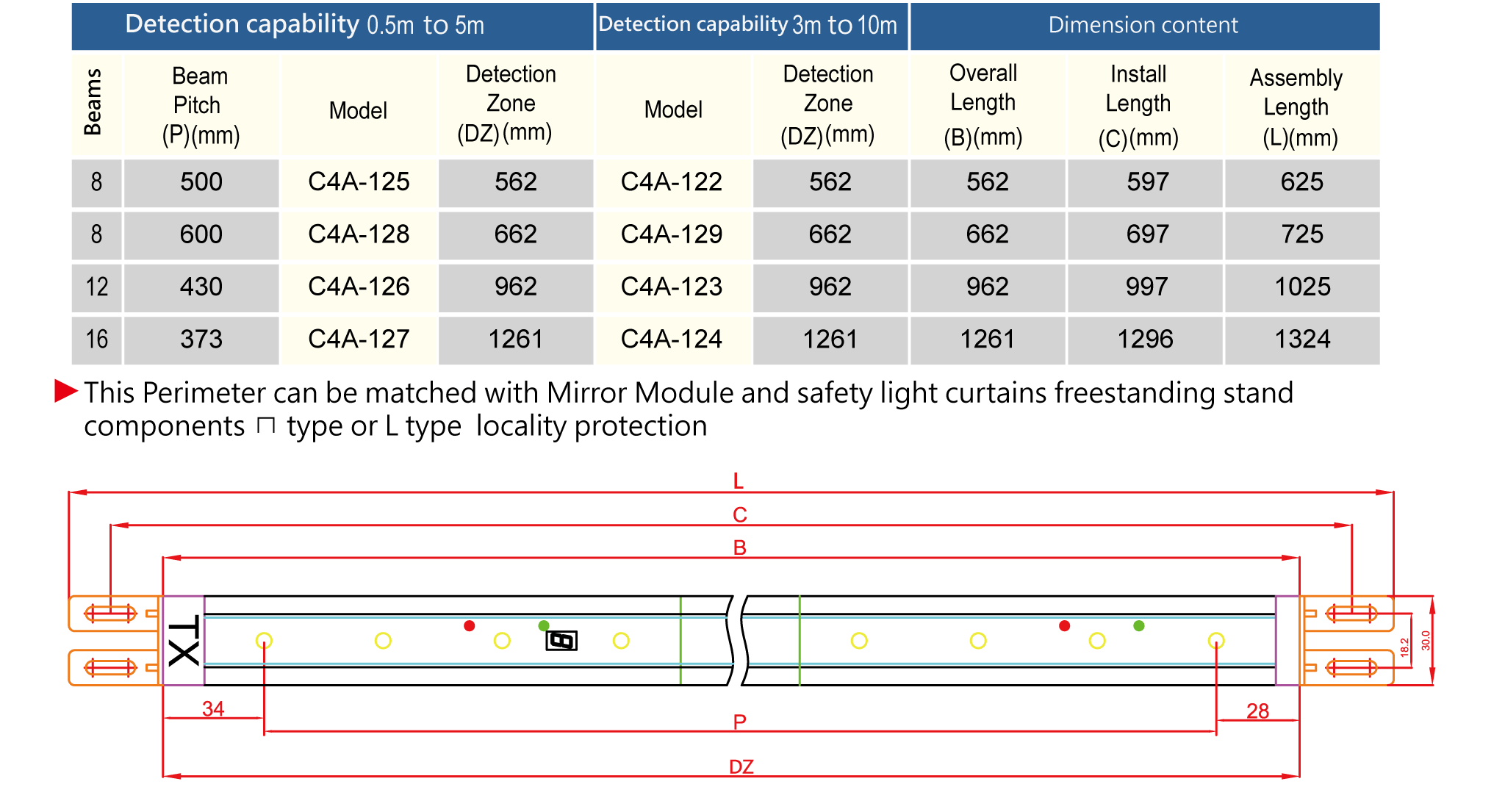

Perimeter series

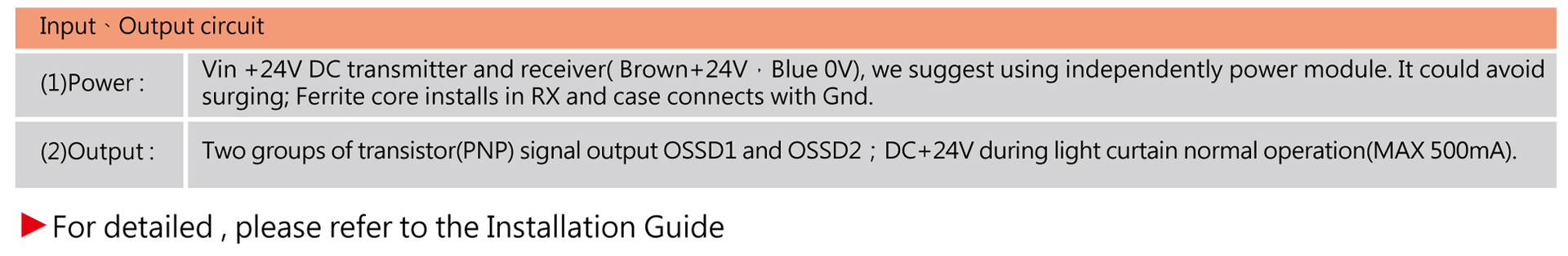

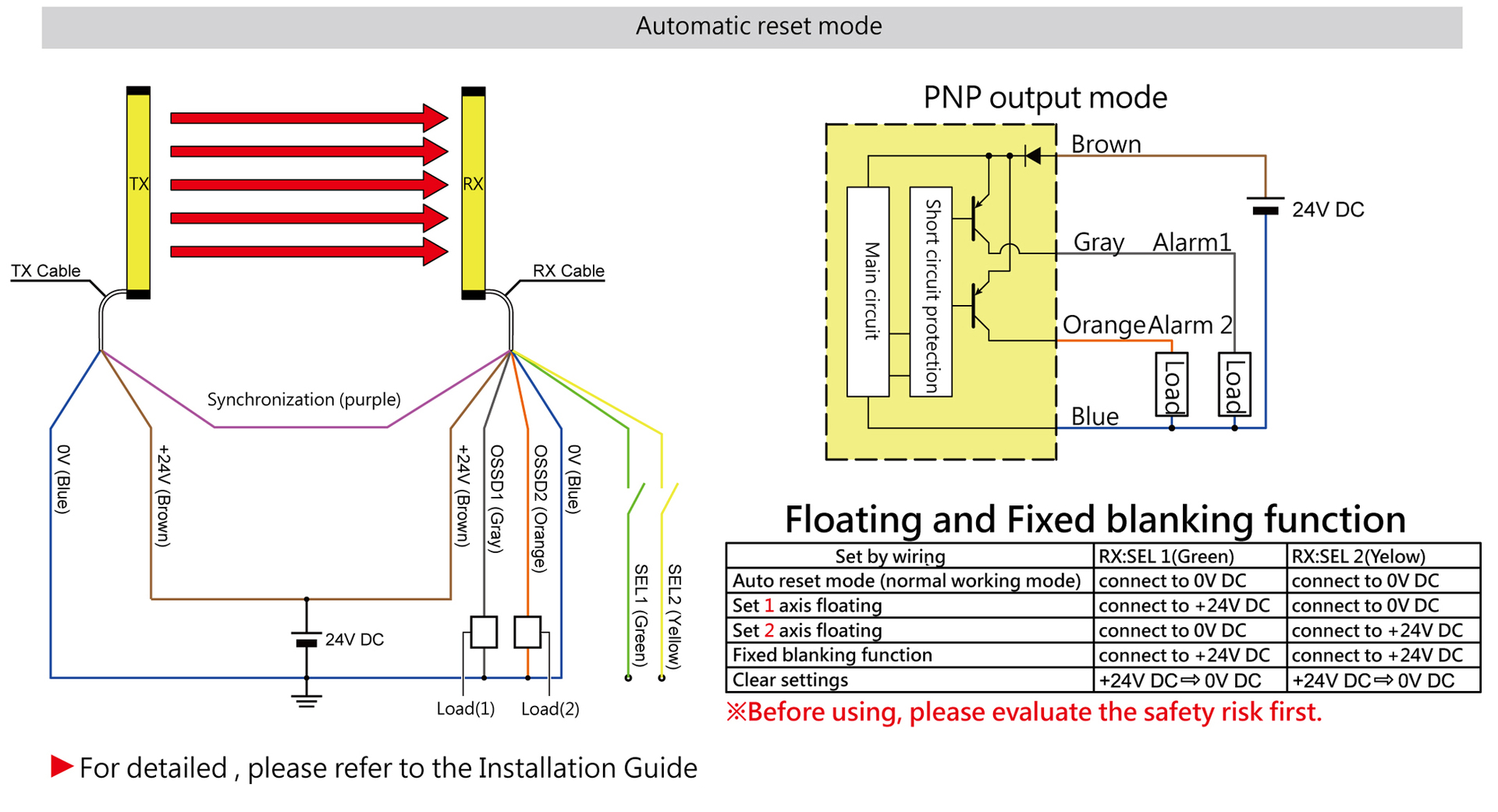

Electric Connection

C4 series(C4-1XX、C4-2XXseries)

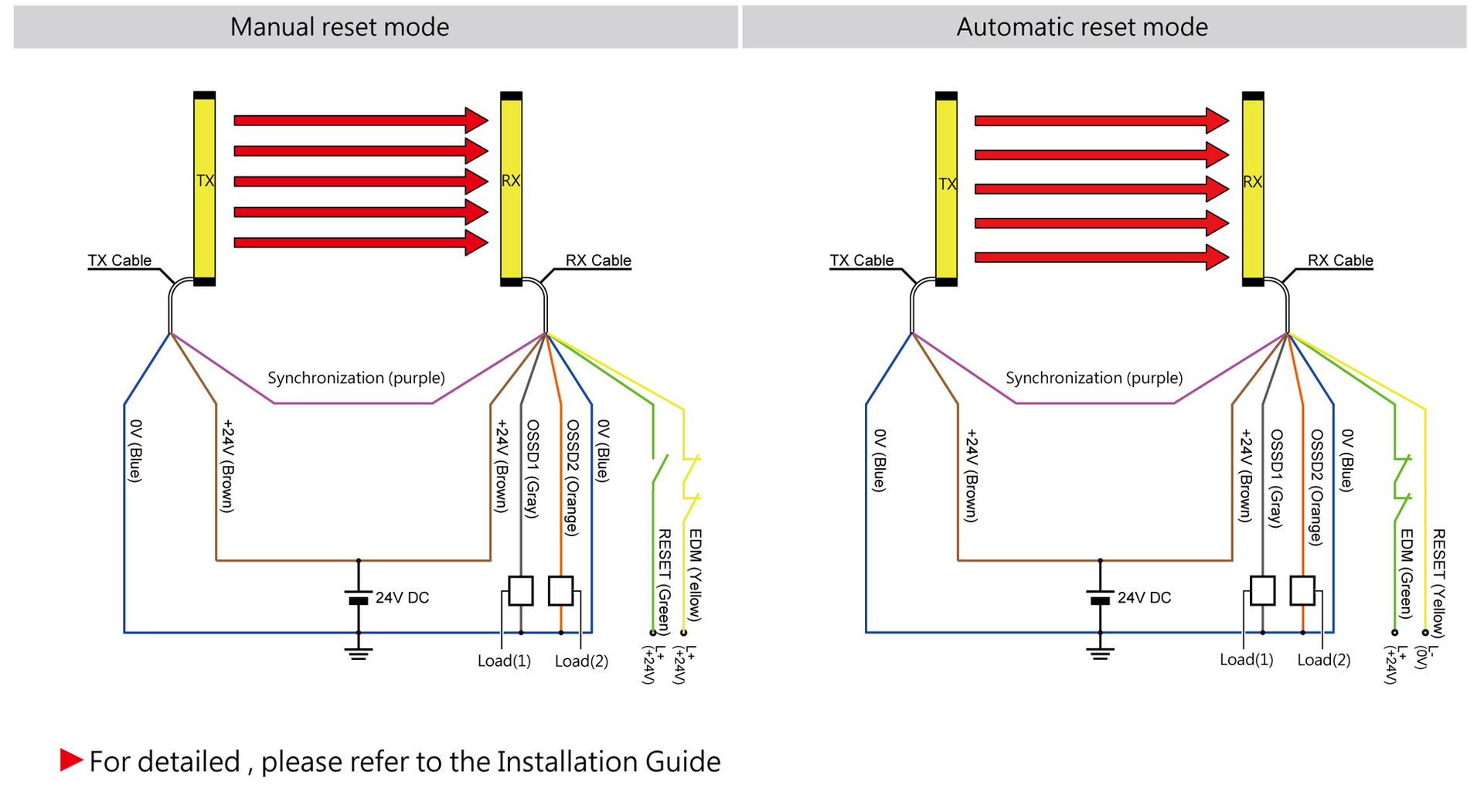

C4B、C4A series

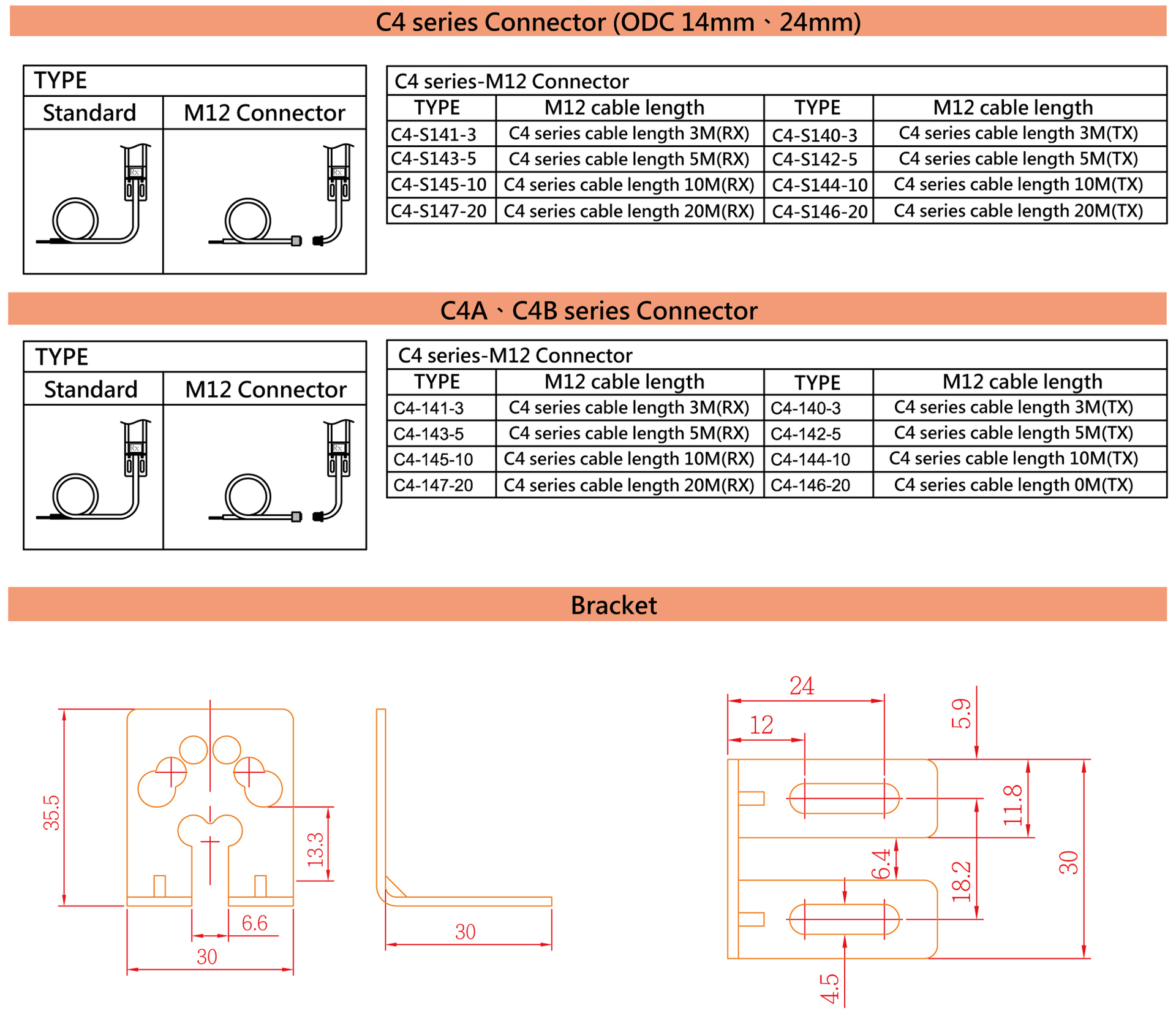

Accessories

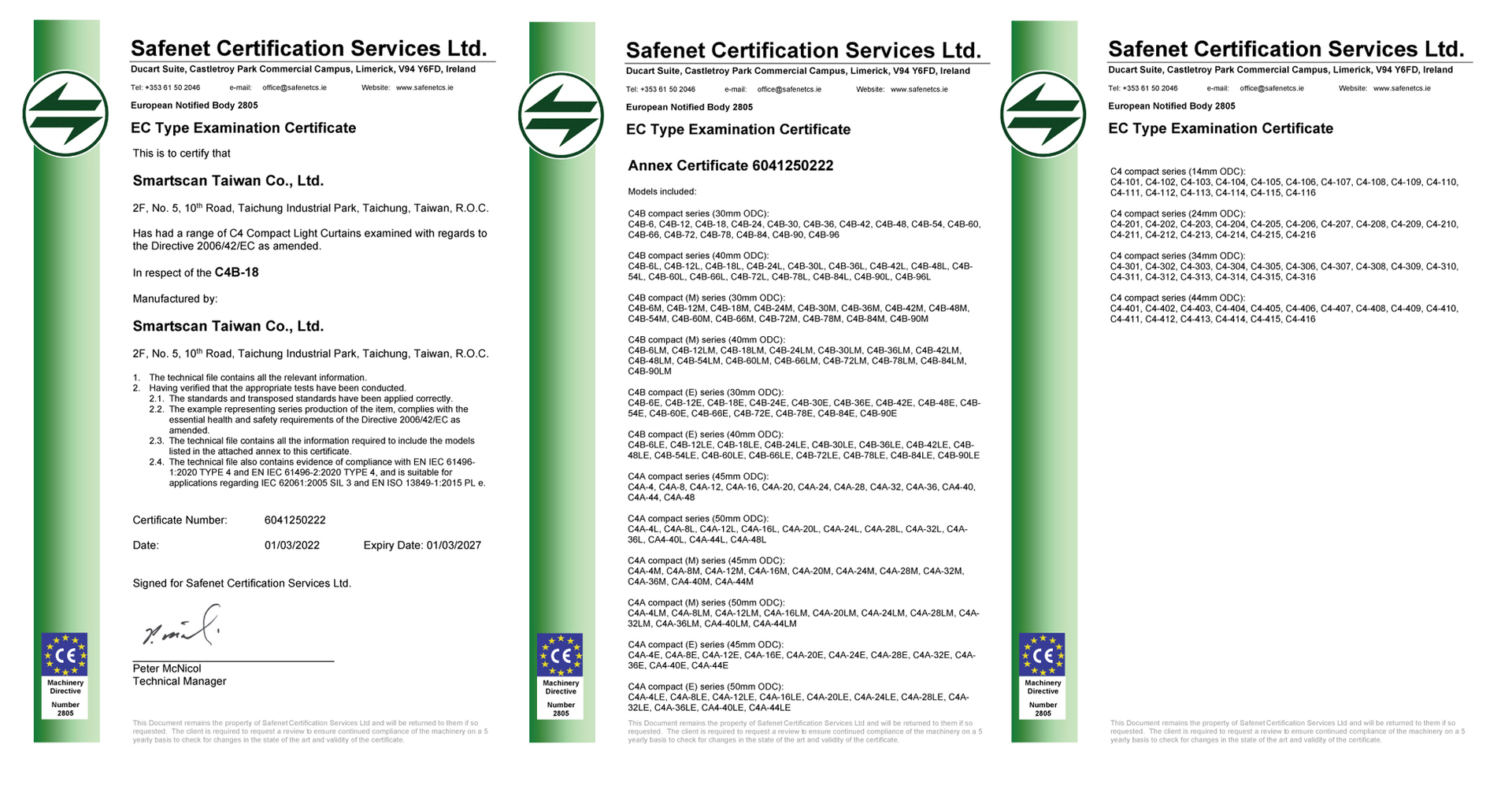

Safety certificate
